1/2 in. Churro Different Lengths

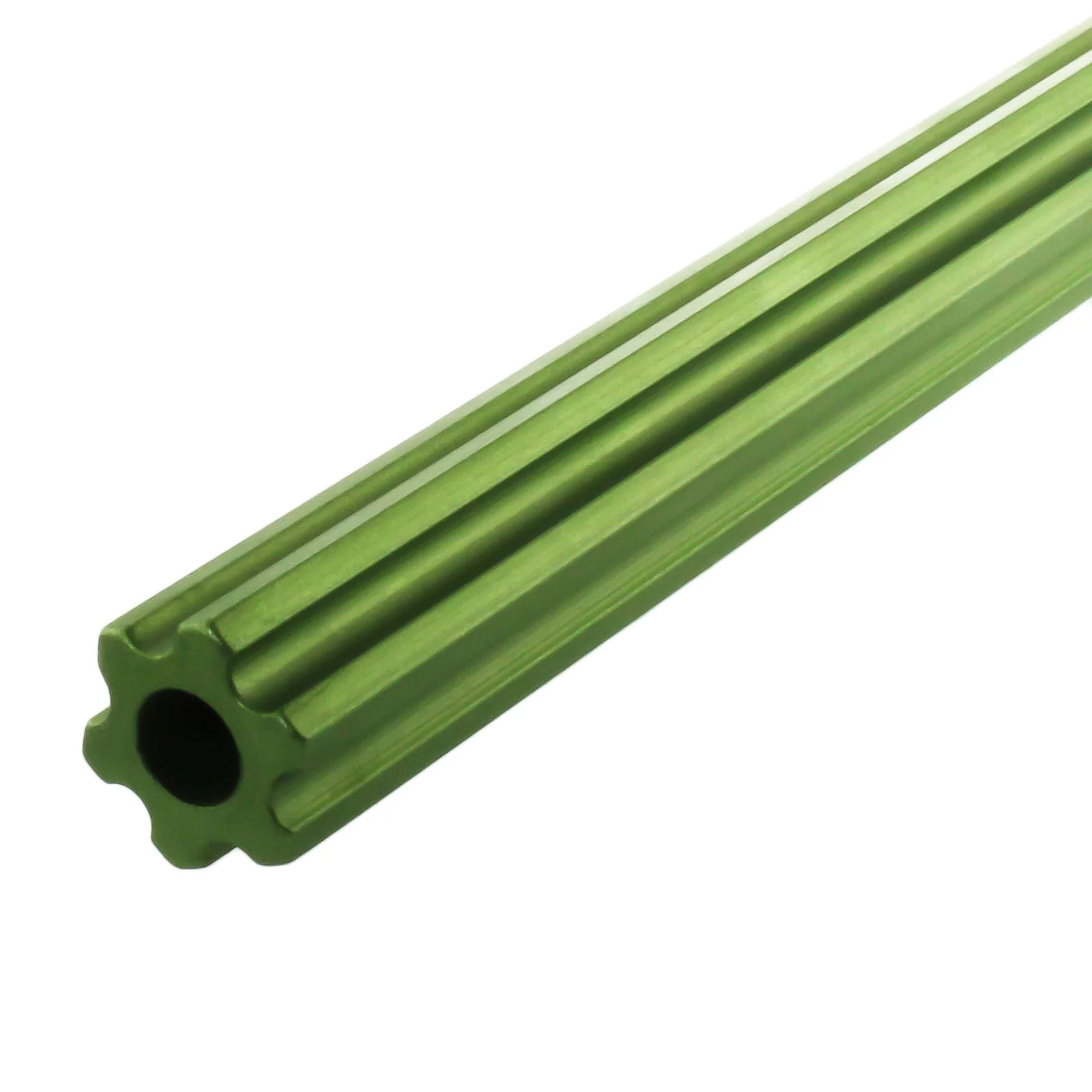

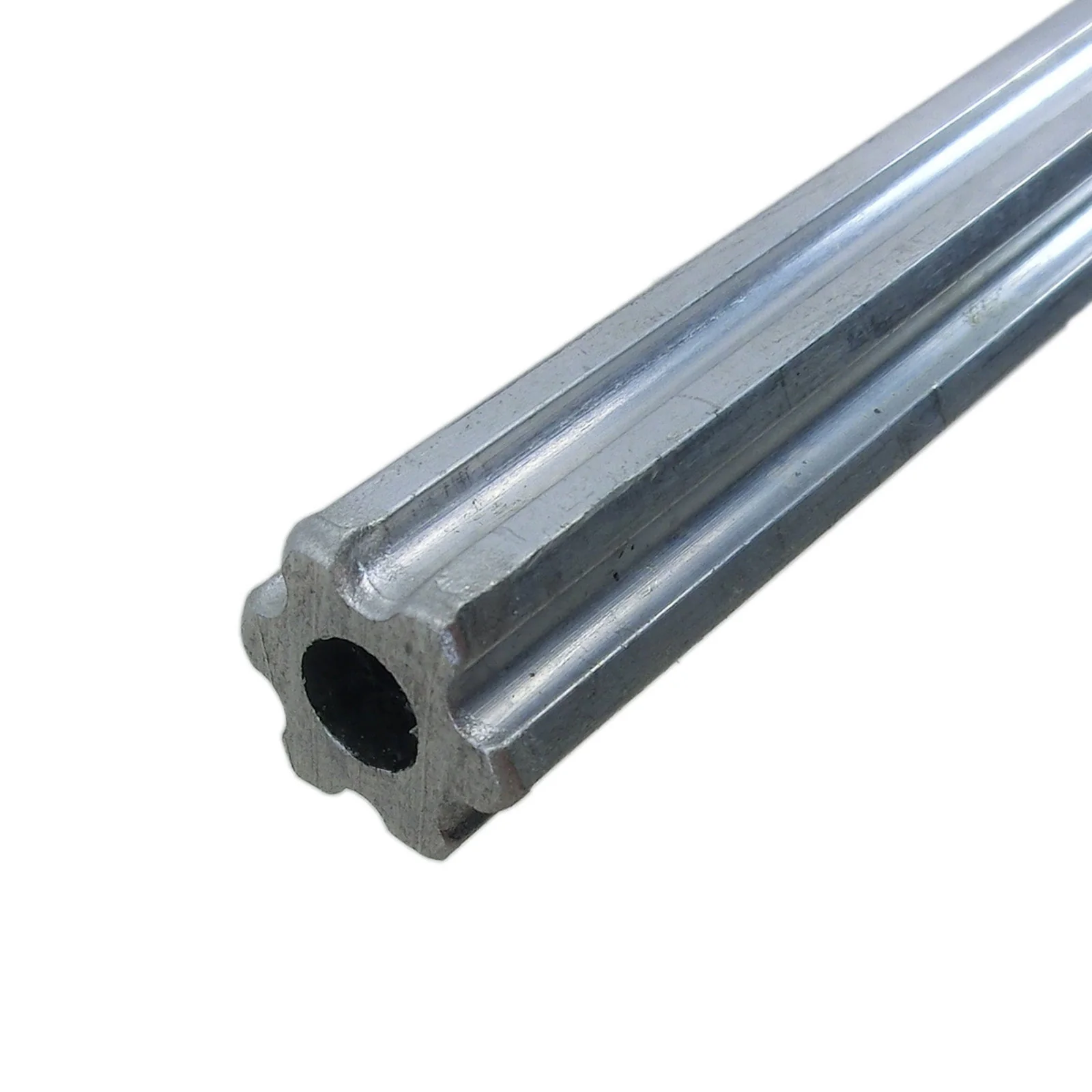

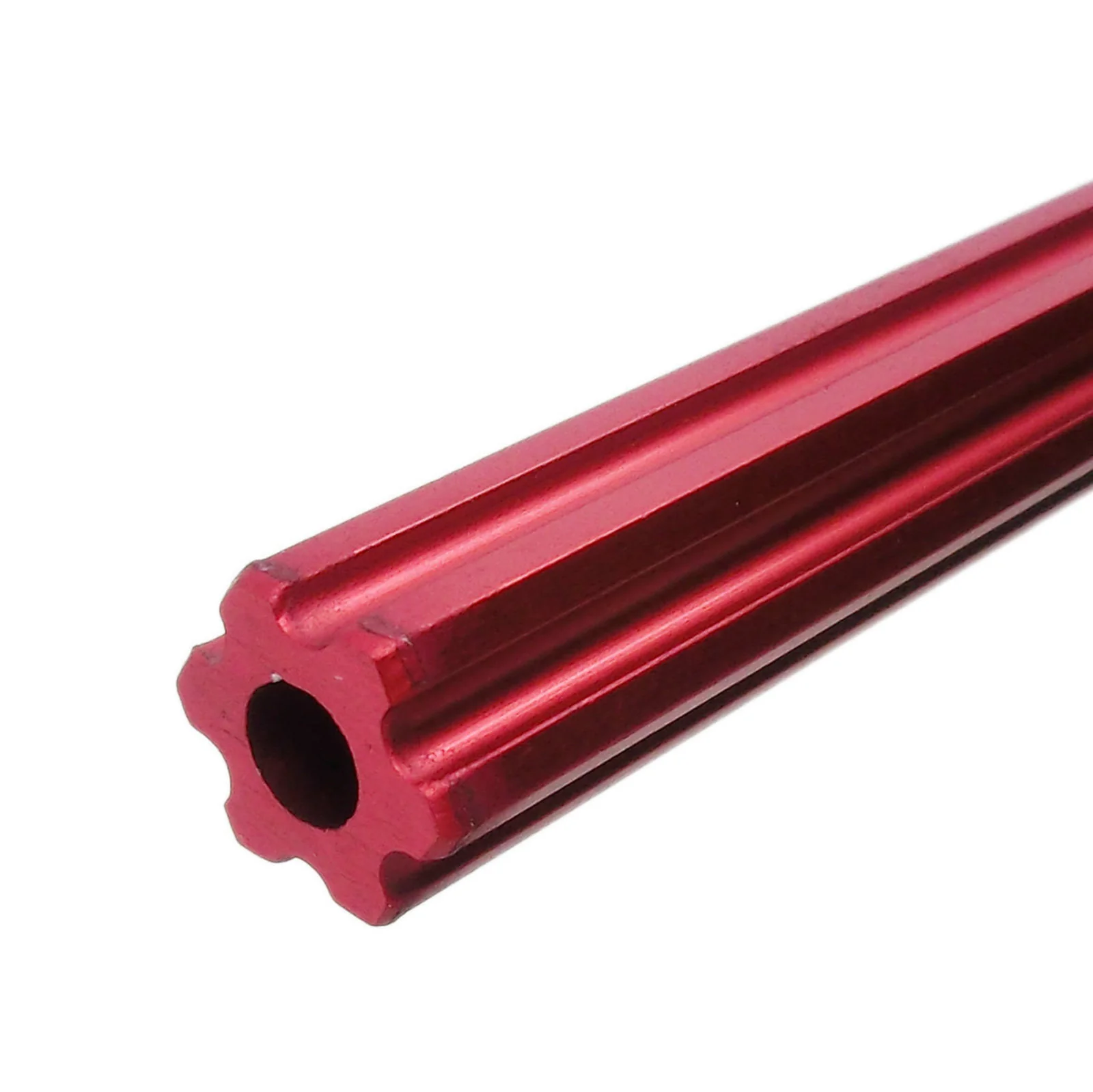

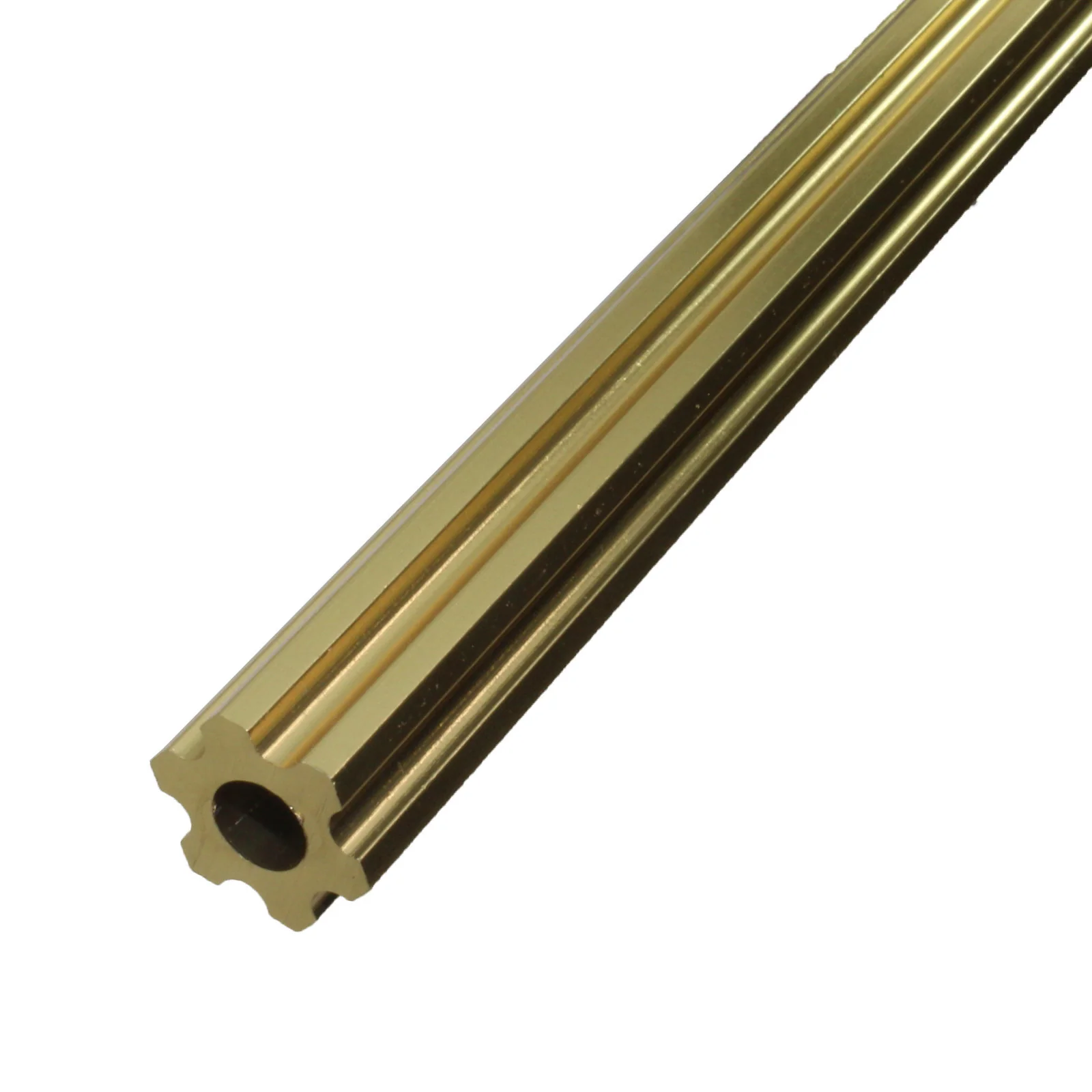

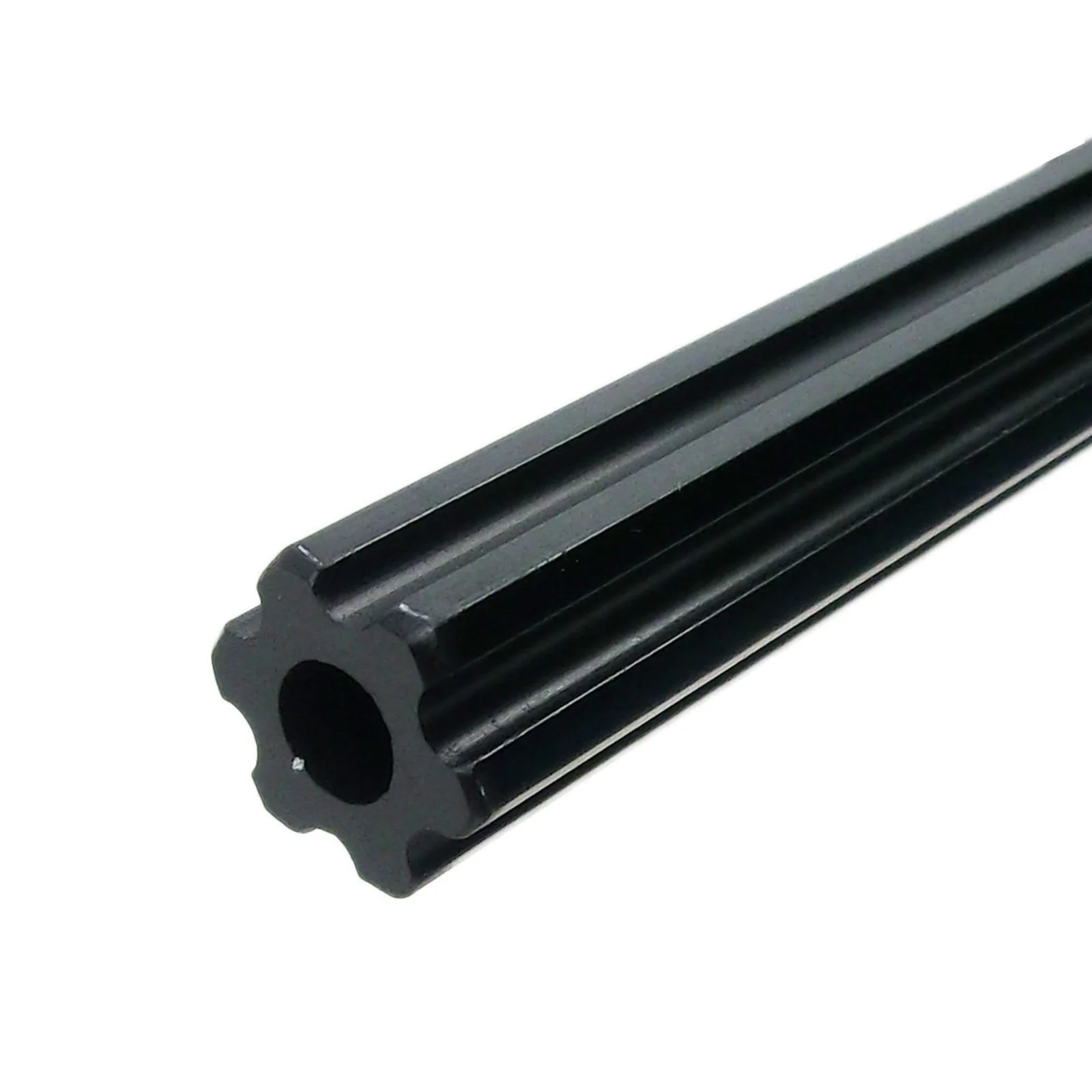

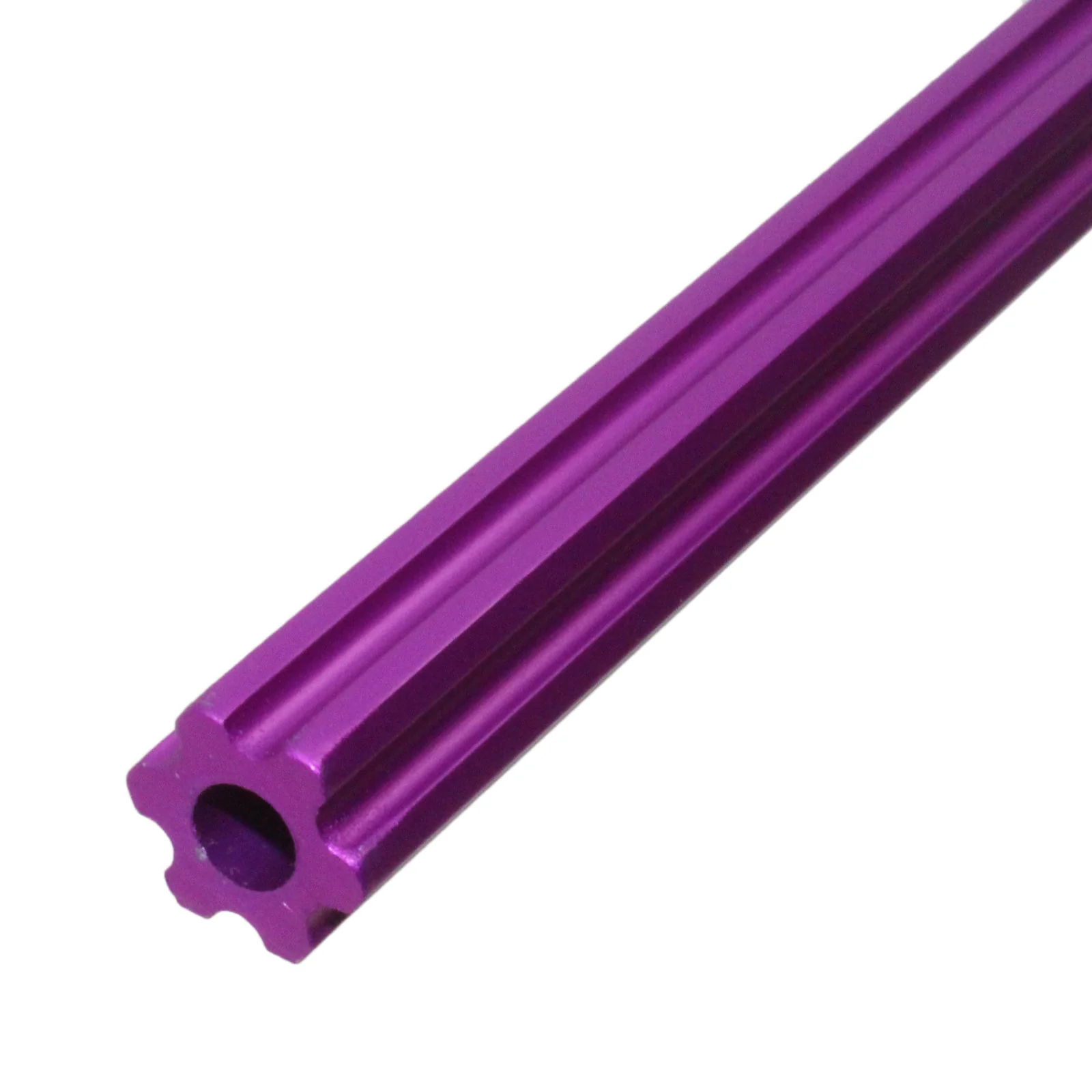

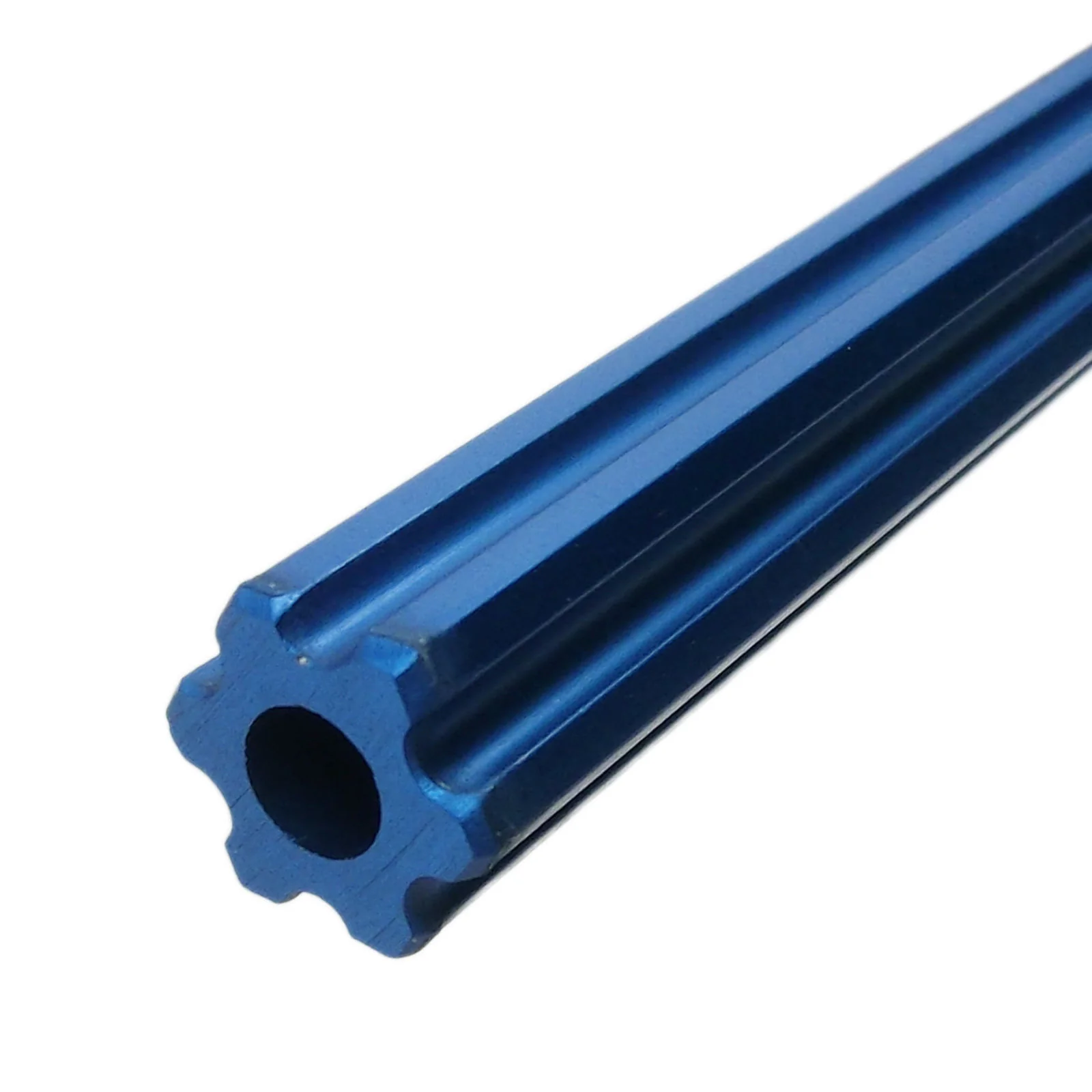

Churro is a versatile extruded aluminum hex profile.
- Description
-
The outside of this part is a 1/2 in. hex with small concave dimples which act as weight savings. There is an inside hole is sized at 0.2 in. in order to fit 1/4-20 thread forming screws. No tapping or threading is needed, as long as a thread forming screw is used. The outside hex size fits a 1/2 in. wrench or socket. You can use am-1182 to secure components to churro. Longer thread forming screws are available if you need to attach larger items to churro.
The 3-foot churro, our most popular length and the best value on shipping, is available anodized in red, blue, purple, gold and black to dress up your robot. Anodized finish is hardy and doesn't flake off or add thickness like paint, but it is possible for a scratch to expose the bare metal beneath. Take basic precautions in your shop like watching for sharp tools or overtightening this churro in a vise.
The anodizing process may result in colors that are not exact to the reference photo. FED-STD-595 is a color description system. These anodized products can be described by this system as follows:Red: 31310-31136Green: 24449-24272Violet: 27142-27144Blue: 35183-35180Gold: 10260-10371 -
- Hex Width: 0.495 in. hex, across flats
- Inside Diameter: 0.231 in.
- Material: 6005A-T61 Aluminum
- Tolerance: (+/- 0.5 in.) for lengths over 1 ft., (+/- 0.020 in.) for lengths under 1 ft.
- Weight: 0.16 lbs./ft.
Select Color
Select Length
From $0.60
Original: $2.00
-70%1/2 in. Churro Different Lengths—
$2.00
$0.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Churro is a versatile extruded aluminum hex profile.
- Description
-
The outside of this part is a 1/2 in. hex with small concave dimples which act as weight savings. There is an inside hole is sized at 0.2 in. in order to fit 1/4-20 thread forming screws. No tapping or threading is needed, as long as a thread forming screw is used. The outside hex size fits a 1/2 in. wrench or socket. You can use am-1182 to secure components to churro. Longer thread forming screws are available if you need to attach larger items to churro.
The 3-foot churro, our most popular length and the best value on shipping, is available anodized in red, blue, purple, gold and black to dress up your robot. Anodized finish is hardy and doesn't flake off or add thickness like paint, but it is possible for a scratch to expose the bare metal beneath. Take basic precautions in your shop like watching for sharp tools or overtightening this churro in a vise.
The anodizing process may result in colors that are not exact to the reference photo. FED-STD-595 is a color description system. These anodized products can be described by this system as follows:Red: 31310-31136Green: 24449-24272Violet: 27142-27144Blue: 35183-35180Gold: 10260-10371 -
- Hex Width: 0.495 in. hex, across flats
- Inside Diameter: 0.231 in.
- Material: 6005A-T61 Aluminum
- Tolerance: (+/- 0.5 in.) for lengths over 1 ft., (+/- 0.020 in.) for lengths under 1 ft.
- Weight: 0.16 lbs./ft.
