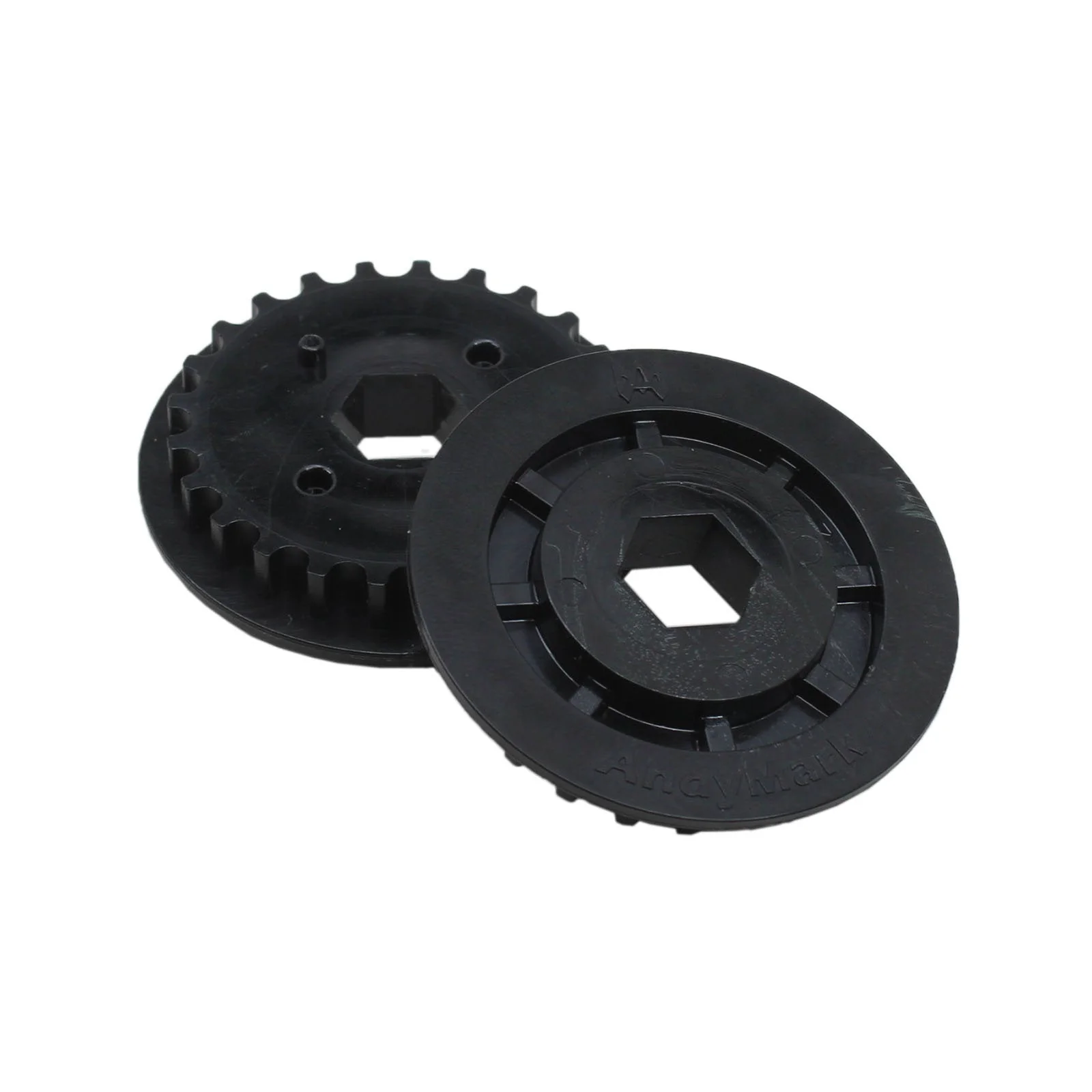

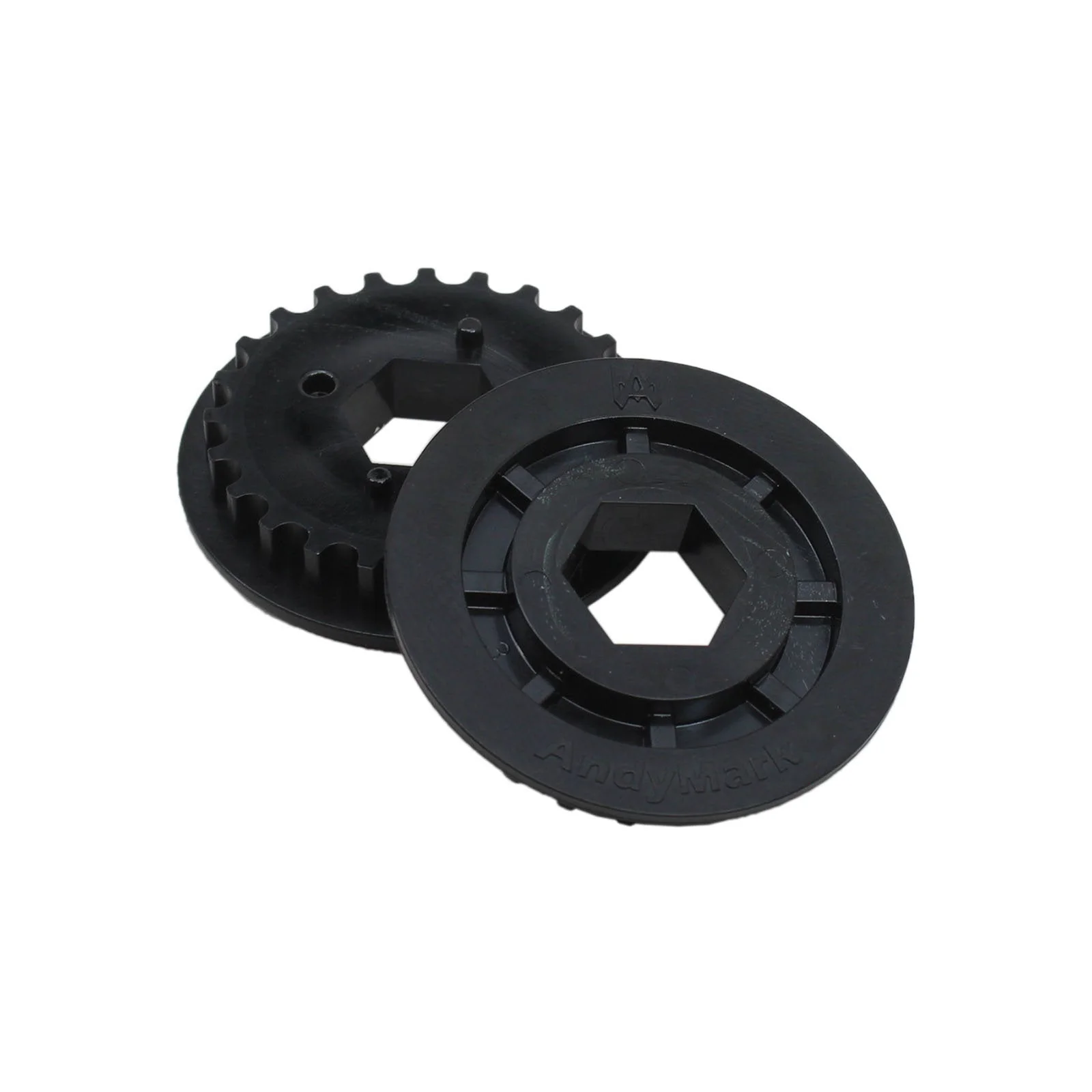

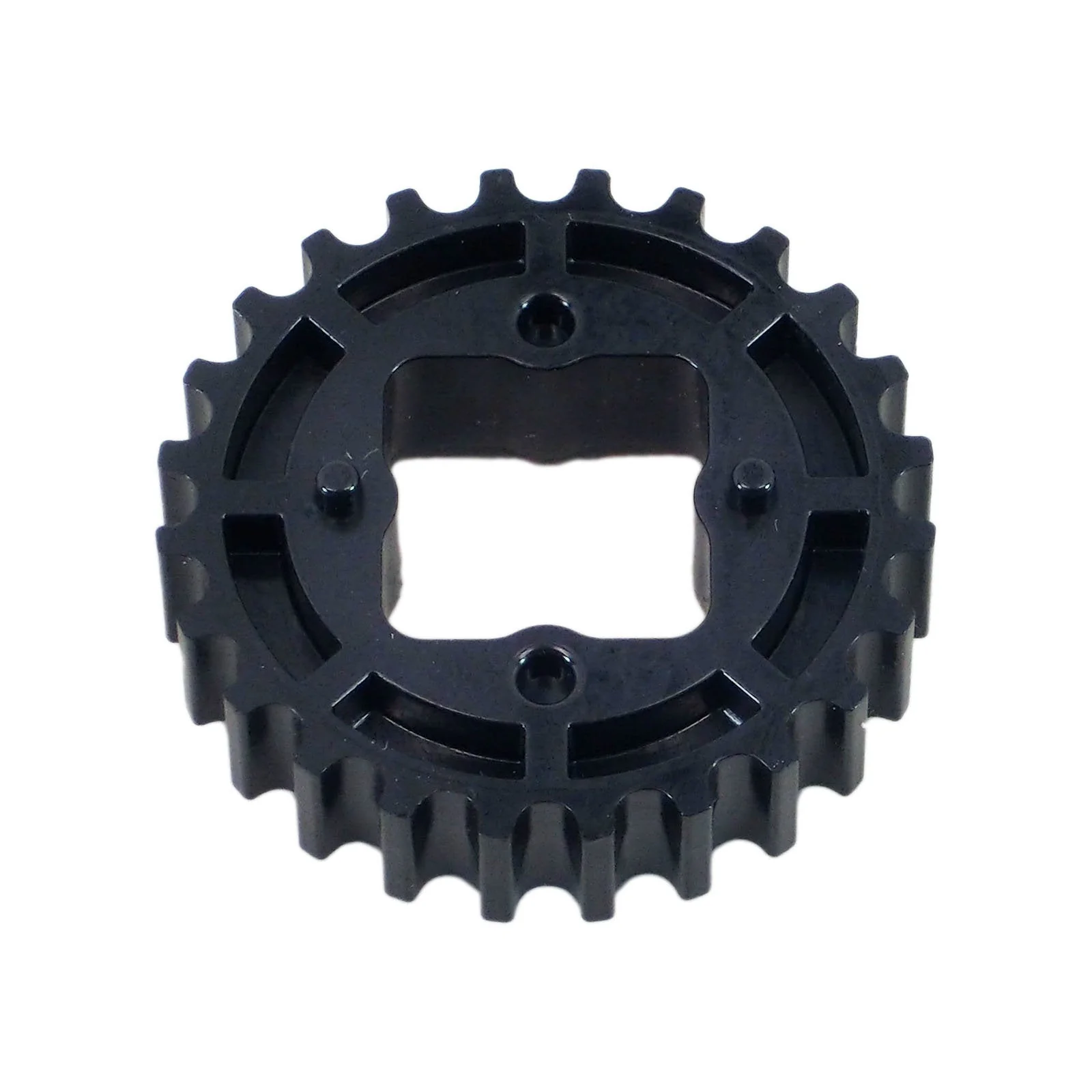

24T Plastic HTD Pulleys
These are 24 tooth pulleys that work with 5 mm pitch HTD timing belts.
- Description
- Specifications
-
These are 24 tooth pulleys that work with 5 mm pitch HTD timing belts. There are three bores available, including 1/2 in. Hex, 3/8 in. Hex, and Nub. Use the pulleys as they comes with a 9mm wide belt or add a Pulley Extension in between the halves to use it with a 15mm wide belt or two 9mm wide belts.
While assembling your robot, it can be helpful to add a drop of super glue to keep the pulley halves together. -
- Belt Profile: 5 mm pitch HTD
- Bore: 0.500 in. [12.7 mm] (1/2) Hex, 3/8 in. Hex, Nub
- Color: Black
- Material: Polycarbonate
- Maximum Diameter: 1.654 in. [42mm]
- Pitch Diameter: 1.504 in.
- Teeth: 24
- Weight: 0.03 lbs.
- Width: 0.551 in. [14 mm], extension adds 0.335 in. [8.5 mm]
