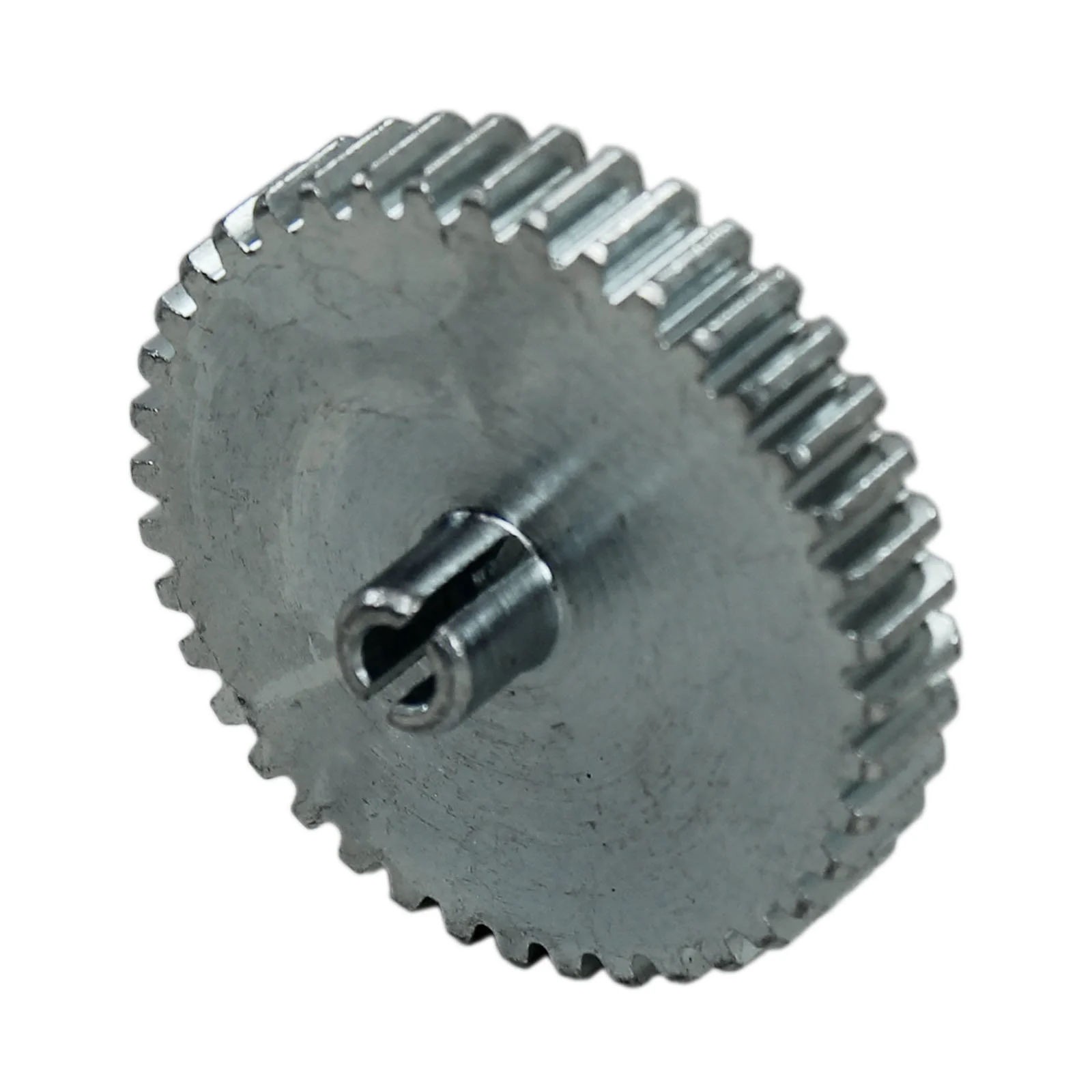

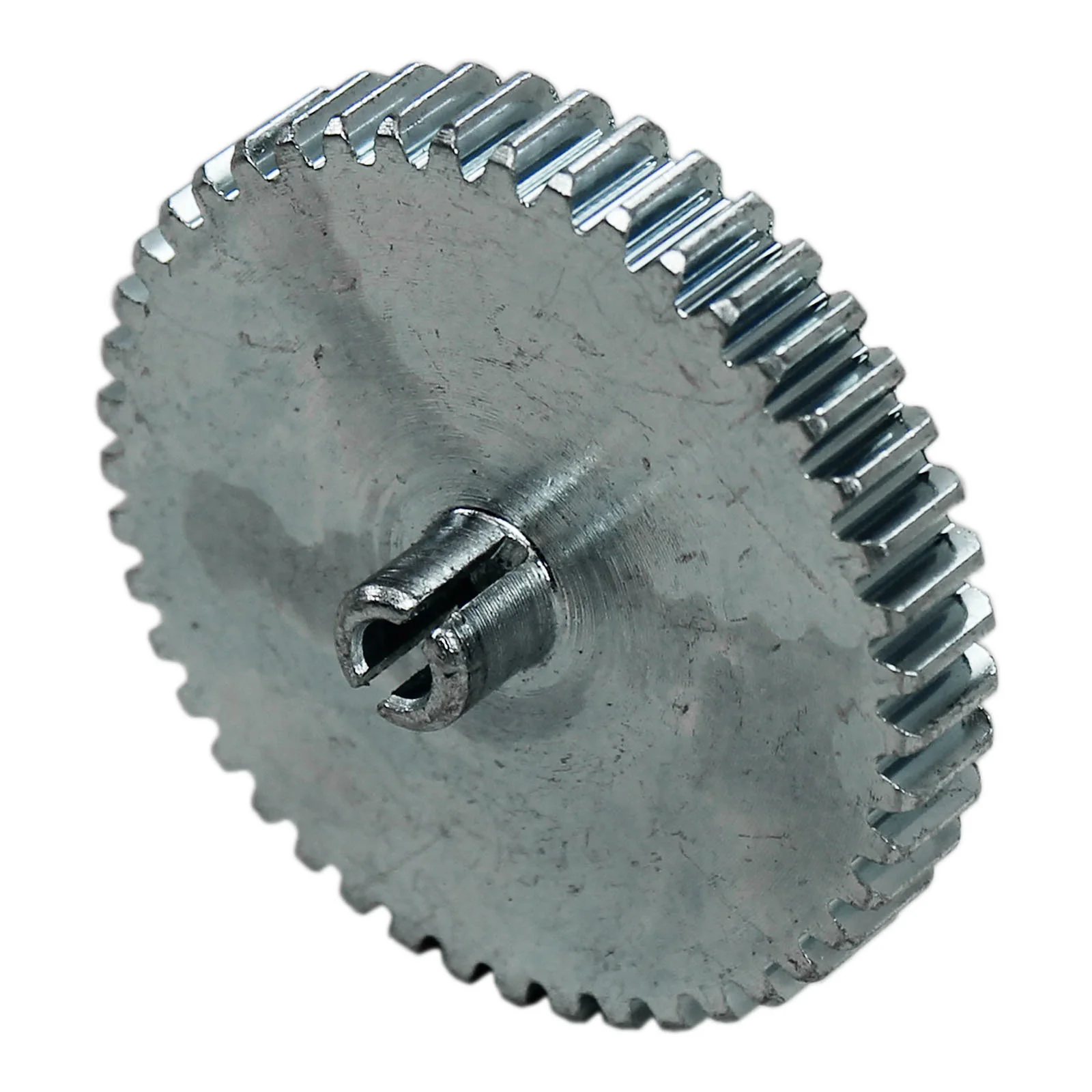

32 DP 0.125 in. Round Bore Steel Pinion Gear for NeveRest

  • Description

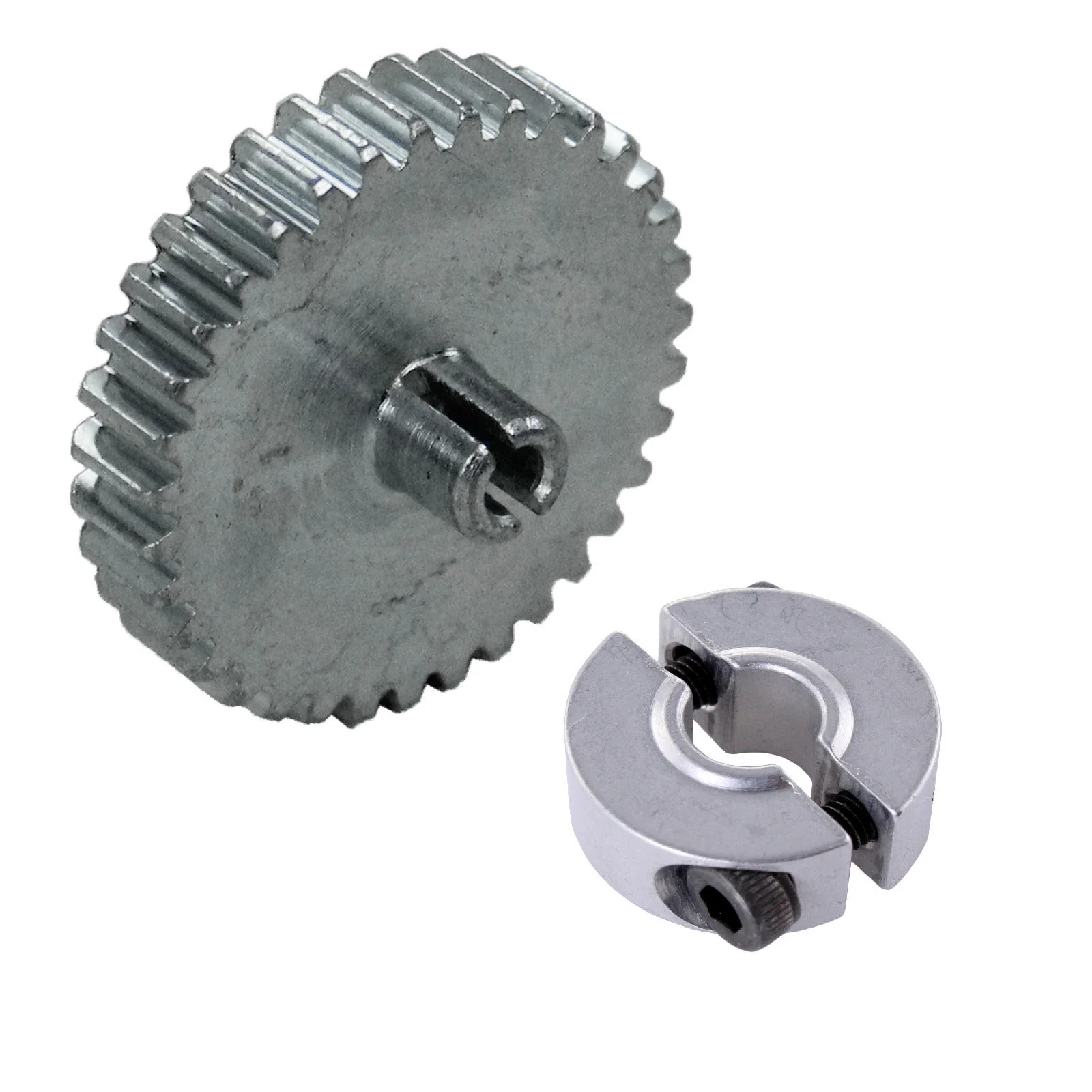

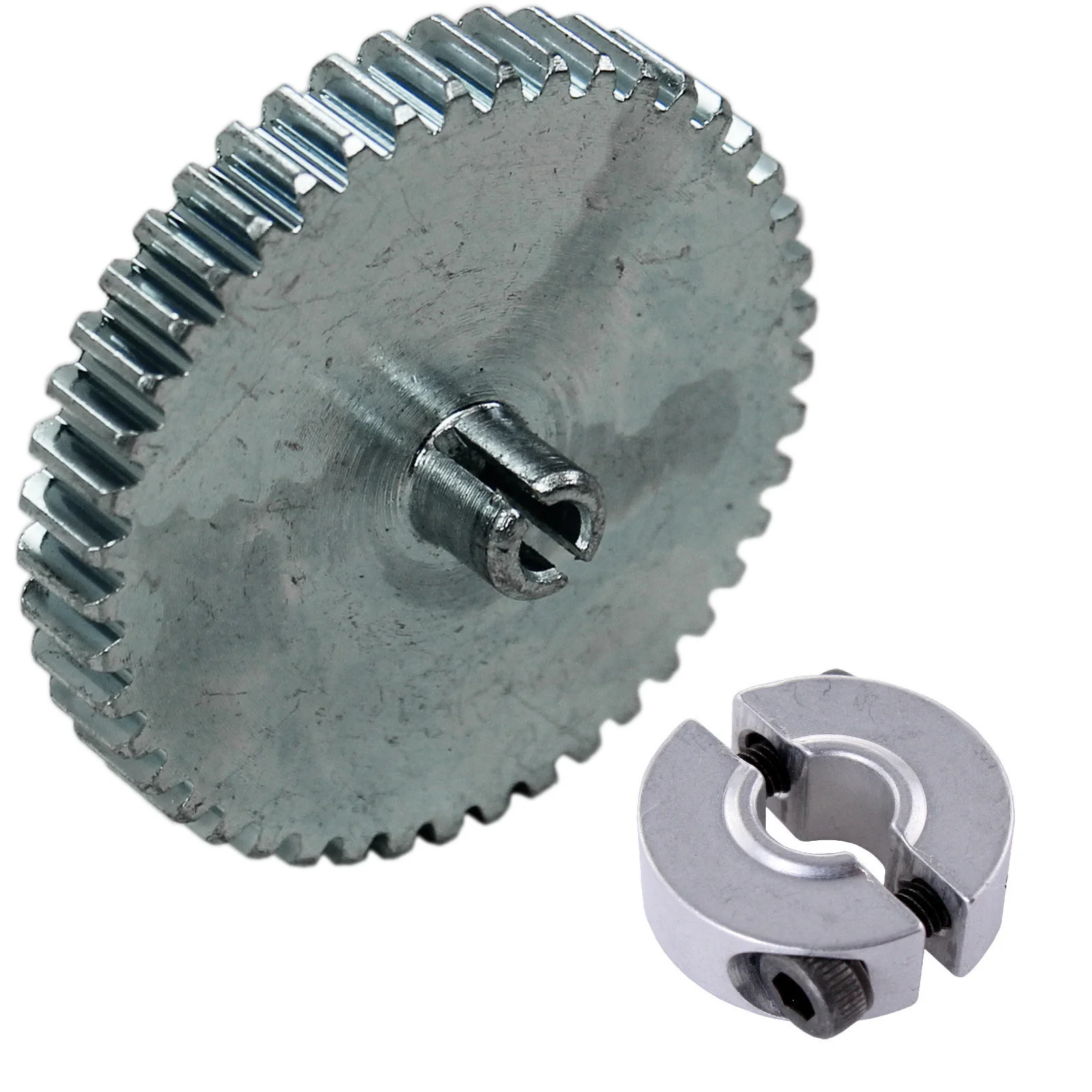

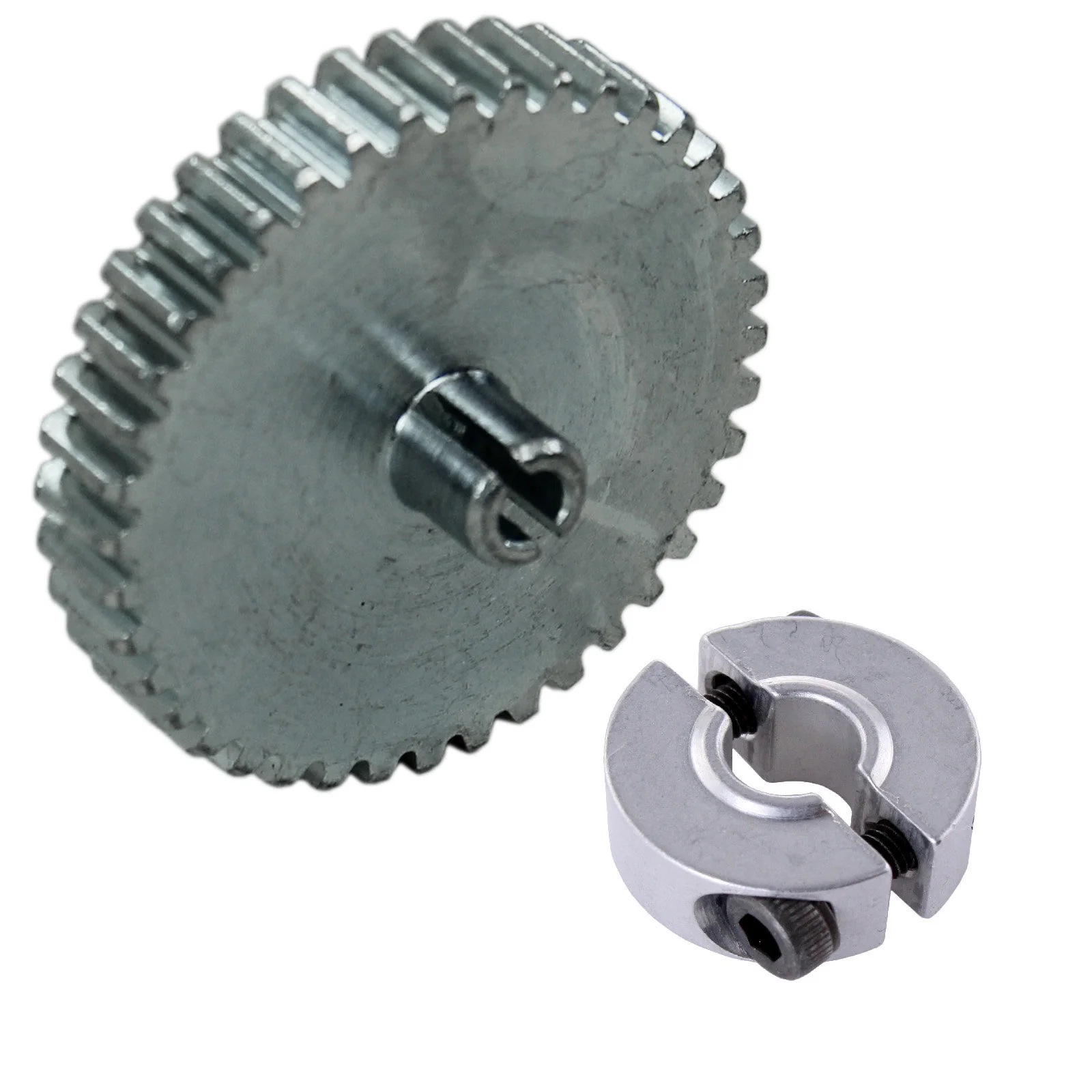

  • These gears with or without 6 mm Collar Clamps are installed onto a NeveRest Motor (am-3104) without any gearbox or pinion attached to the motor shaft. This gear can also be used with any motor with a 0.125 in. output shaft.
    • Bore: 0.125 in. Round
    • Diametral Pitch: 32
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pressure Angle: 20°
    • Teeth: 35, 40, 45
    • Thickness: 0.236 in.
Select Includes Collar Clamp
Select Tooth Count
From $3.84

Original: $12.80

-70%
32 DP 0.125 in. Round Bore Steel Pinion Gear for NeveRest—

$12.80

$3.84

Product Information

Shipping & Returns

Description

  • Description
  • These gears with or without 6 mm Collar Clamps are installed onto a NeveRest Motor (am-3104) without any gearbox or pinion attached to the motor shaft. This gear can also be used with any motor with a 0.125 in. output shaft.
    • Bore: 0.125 in. Round
    • Diametral Pitch: 32
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pressure Angle: 20°
    • Teeth: 35, 40, 45
    • Thickness: 0.236 in.
