This tried and true gearbox is a single-stage, single reduction gearbox that yields a 4.67:1 gear reduction.

• Description
• Gearbox Ratios
• Specifications
• Documentation

• This gearbox is shipped in kit form, unassembled.

  The CIMple Box accepts up to two motors with all the hardware necessary to install them. You have the choice between pinions for either a NEO / CIM style Motor, or a Falcon 500 motor.

  New in V2 this gearbox has more user friendly mounting options on a 1 in. pitch for #10 screws on both the mounting flanges and the face of the gearbox. The mounting flanges can be oriented in either direction based on user preference. There are 5 different shaft options to best suit your application. It also uses a "Standard" weight relieved 56T gear and has options for either CIM Style or Falcon 500 inputs out of the box.

  Included Items:

  • 1 - 3/8 in. id bearing, shielded (R6ZZ) (am-0516)
  • 1 - CIMple Box Shaft Plate (am-0738a)
  • 1 - CIMple Box Housing (am-0739a)
  • 4 - 10-32 x 5/8 in. SHCS (am-1007)
  • 1 - 1/4 in. Flat Washer (am-1027)
  • 1 - 1/4-20 x 1/2 in. BHCS (am-1039)
  • 4 - 10-32 Nylock Nut (am-1042)
  • 6 - 10-32 Nylock Jam Nut (am-1063)
  • 1 - 3/8 in. ID Shim Washer (am-1666)
  • 1 - Red Tacky Grease, 14.2 gram (am-2768)
  • 1 - 1/2 in. Hex Bearing (am-2986)
  • 1 - 56T Gear (am-3822)
  • Additional components including output shafts, pinions and hardware vary based on selection.

  ----------------------------------------------------------------------------------------------------
  Product Usage:
  All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short run times in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thoroughly grease the gear teeth periodically to ensure smooth operation.
  Additional Encoder: An optional Encoder can be purchased and added to this gearbox.
•
  Please contact [email protected] if you do not see a Ratio Table
• • Diametral Pitch: 20
  • Gear Type: Spur
  • Material: Steel, Glass Filled Nylon, Aluminum
  • Motor Input: CIM, NEO, Falcon 500
  • Motor Quantity: 1, 2

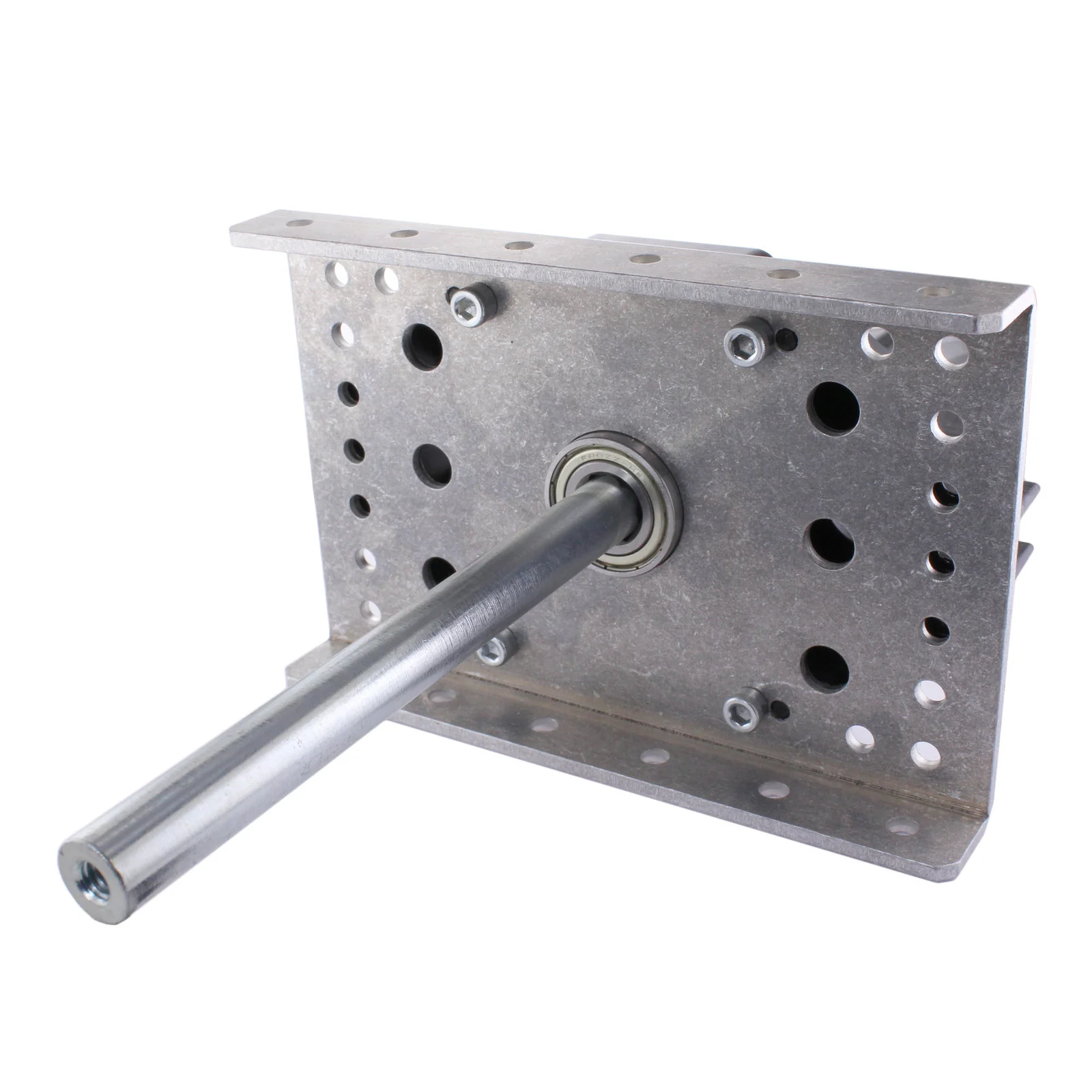

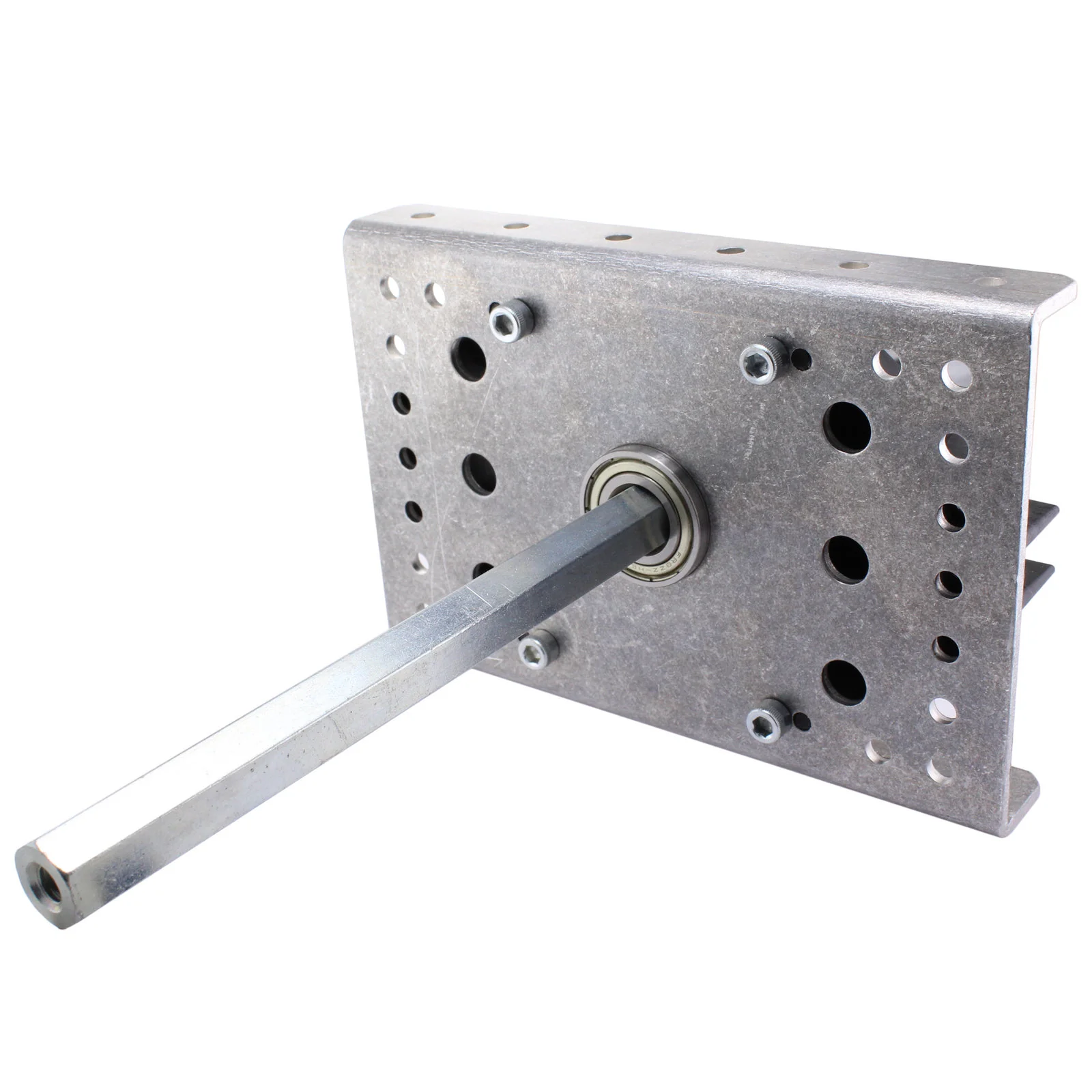

  • Output Shaft: 1/2 in. Diameter, 1/8 in. Keyway, 1/2 in. Hex
  • Pressure Angle: 14.5°
  • Ratio: 4.67:1
  • Weight: 1.40 lbs.
•
