Climber in a Box Bearing Kits
This kit is made of the components that facilitate smooth linear movement on the Climber in a Box.
- Description
- What's in the Box?
-

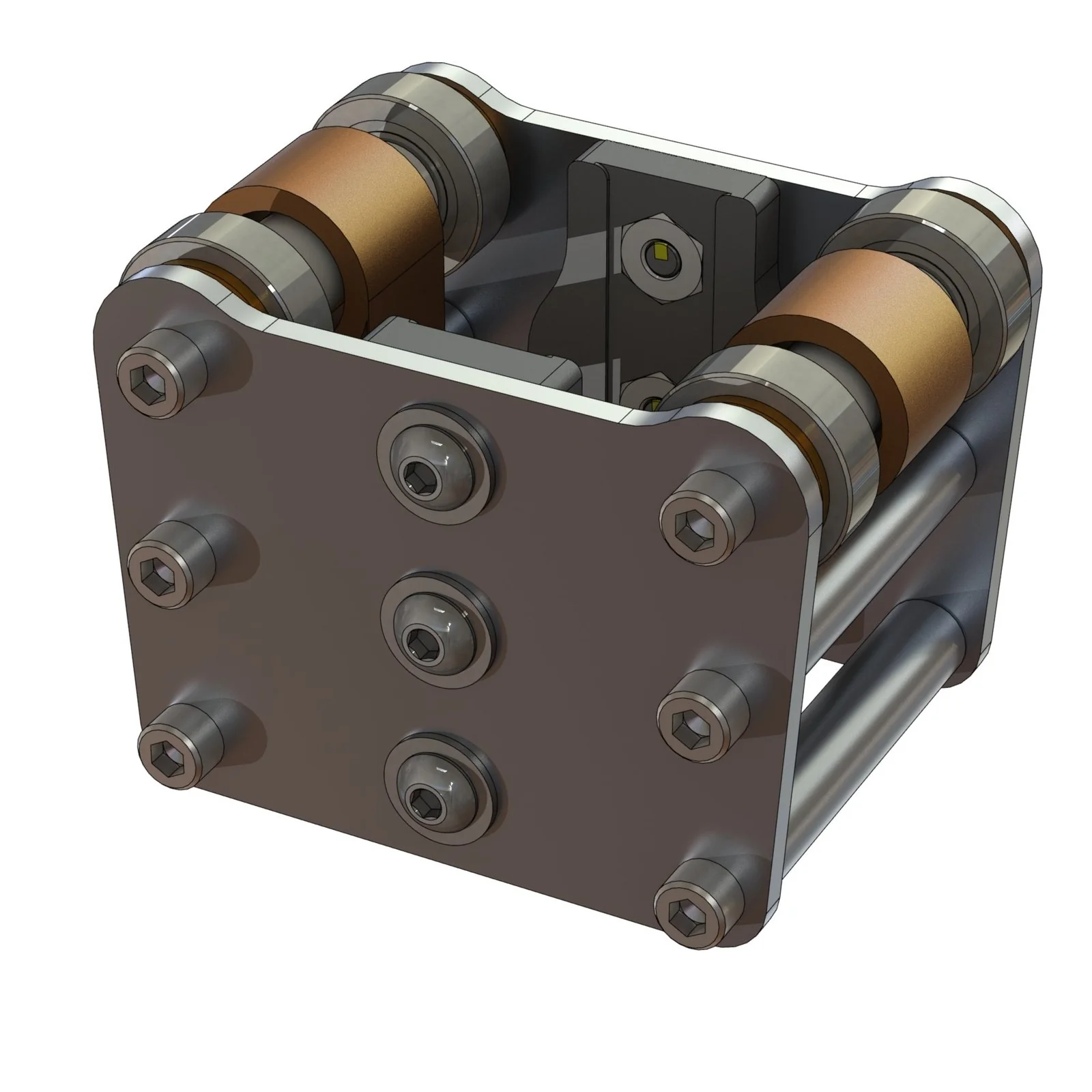

This kit is made of the components that facilitate smooth linear movement on the Climber in a Box. The Bearing Kits are made to allow a piece of Box Extrusion to telescopically slide in and out of another, a large piece of Box Extrusion. These kits either come with brackets that work with a 1 in. and 1.5 in. 0.063 in. wall box tube , or a 1.5 in. and 2 in. 0.063 in. wall box tube. am-4661 is 3.22 lbs and am-4662 is 3.34 lbs.
-
1 to 1.5 in. extrusion (am-4661):
- 2 - 1.5 in. Tube Bearing Plate (am-4644)
- 4 - 0.192 in. ID 0.375 in. OD 1.5 in. Long Aluminum Spacer (am-1599)
- 2 - 0.375 in. ID 0.5 in. OD 0.688 in. Long Plastic Spacer (am-1611)
- 2 - 0.192 in. ID 0.3125 in. OD 1.5 in. Long Aluminum Spacer (am-1503)
- 2 - Insider Slider Block (am-4629)
- 2 - 1 x 1 in. Clamp Slider Block (am-4630)
- 1 - #10-32 0.875 in. Long Male to Female Standoff (am-1613)
- 2 - 0.625 in. Wide 30 in. Long Constant Force Spring (am-4657)
- 8 - 8 mm Flat Washer (am-1009)
- 4 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
- 10 - 10-32 Nylock Jam Nut (am-1063)
- 6 - 10-32 Jam Nut (am-1612)
- 6 - 10-32 x 2 in. Socket Head Cap Screw (am-1049)
- 8 - 10-32 x 3/8 in. Button Head Cap Screw with Nylon Patch (am-1588)
- 6 - #10 Flat Washer (am-1026)
- 4 - 10-32 x 0.5 in. Hex Drive Flat Head Cap Screw with Nylon Patch (am-1505)
1.5 to 2 in. extrusion (am-4662):
- 2 - 2 in. Tube Bearing Plate (am-4645)
- 4 - 0.192 in. ID 0.375 in. OD 2 in. Long Aluminum Spacer (am-1600)
- 2 - 0.33 in. ID 0.47 in. OD 1.18 in. Long Plastic Spacer (am-1610)
- 2 - 0.192 in. ID 0.3125 in. OD 2 in. Long Aluminum Spacer (am-1582)
- 2 - Insider Slider Block (am-4629)
- 2 - 1.5 x 1.5 in. Clamp Slider Block (am-4631)
- 2 - 0.625 in. Wide 30 in. Long Constant Force Spring (am-4657)
- 8 - 8 mm Flat Washer (am-am-1009)
- 4 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
- 12 - 10-32 Nylock Jam Nut (am-1063)
- 6 - 10-32 Jam Nut (am-1612)
- 6 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
- 8 - 10-32 x 3/8 in. Button Head Cap Screw with Nylon Patch (am-1588)
- 6 - #10 Flat Washer (am-1026)
- 4 - 10-32 x 0.5 in. Hex Drive Flat Head Cap Screw with Nylon Patch (am-1505)
