Pneumatic Fitting Elbow 1/4 in. Tube to Thread
- Description
-

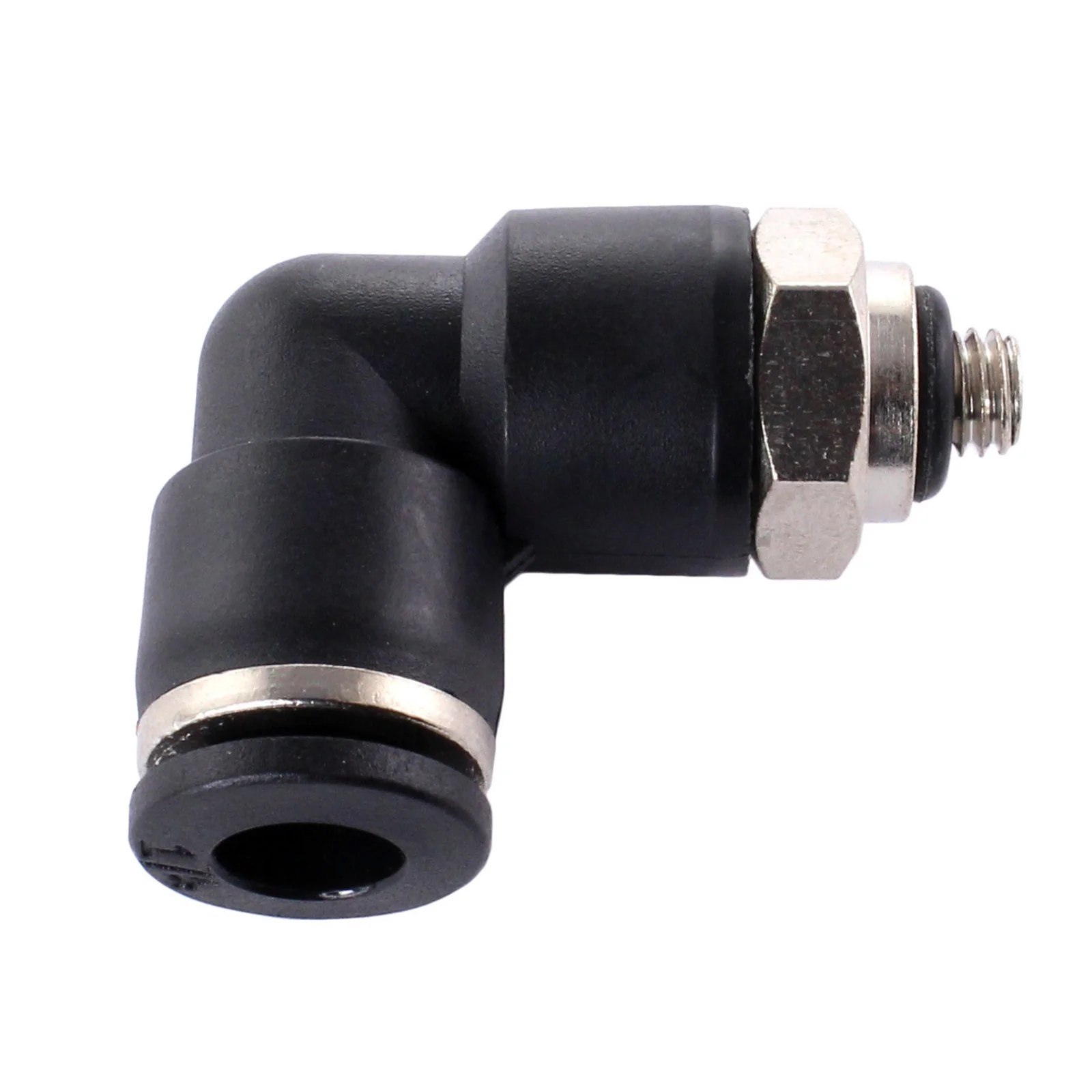

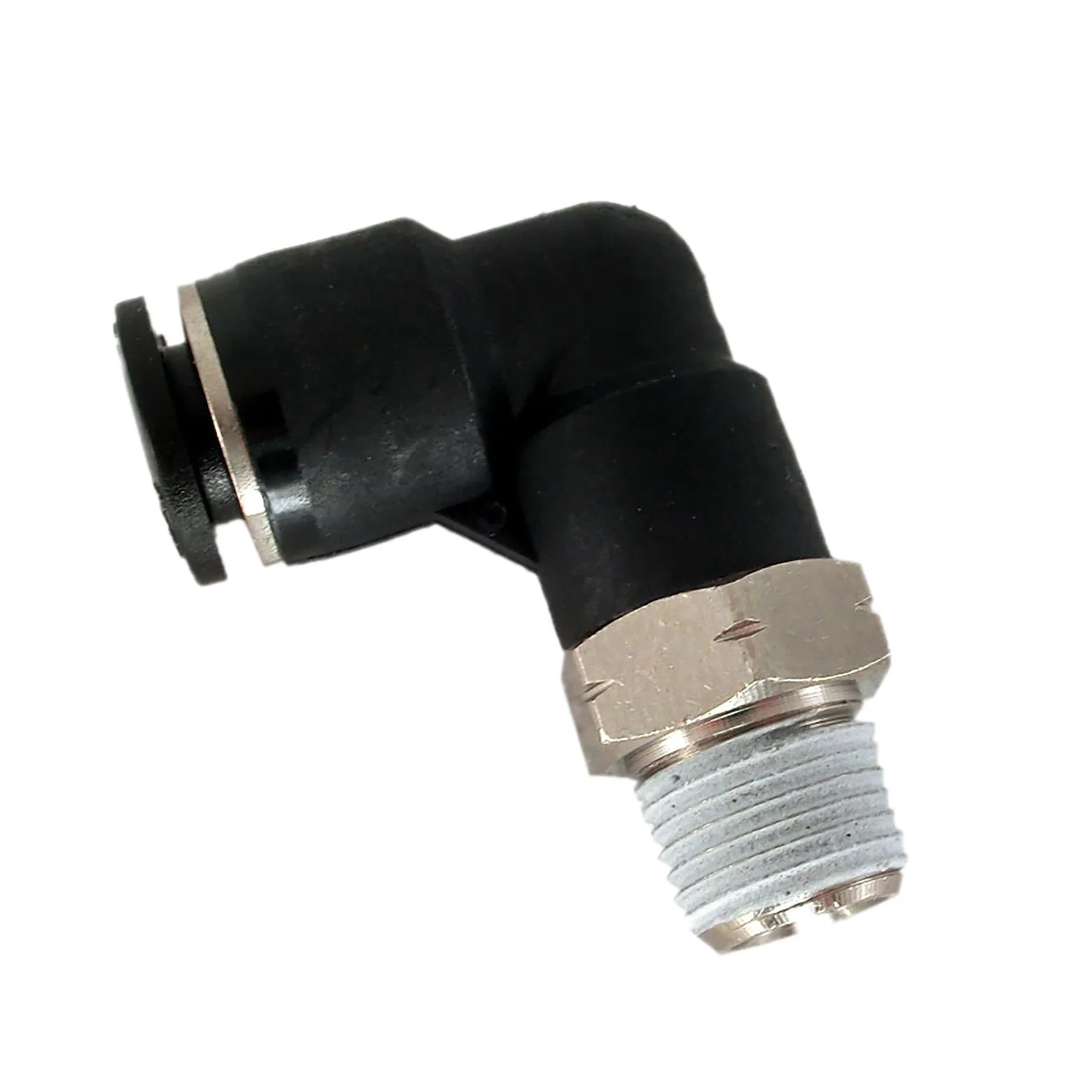

This is a pneumatic push-to-connect male elbow fitting.
Choose your thread port option between 1/8 in. NPT male, 1/4 in. NPT male, and 10-32 UNF male
All have a push-to-connect fitting on the other end for a 1/4 in. diameter tube.
NPT THREAD
Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameterPipe Size (NPT) 1/8 1/4 3/8 1/2 Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14 Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch -
- Hex Width: 0.5 in.
- Material: Brass with nickel plating with plastic body material
- Operating Pressure: up to 150 psi
- Port(s): (1) 1/4 in. Female Tube Press-In, Your Choice
- Weight: 0.03 lbs.
Select Thread Size
From $0.30
Original: $1.00
-70%Pneumatic Fitting Elbow 1/4 in. Tube to Thread—
$1.00
$0.30Product Information
