Powered Elevator Corner Kits

Product image 1
1 / 5

Powered Elevator Corner Kits

  • Description
  • What's in the Box?

  • These Kits are the cornerstone of the AndyMark Powered Elevator. Combinations of these can form any of the Powered Elevator Stages.

    • The Internal Corner Kit is used in the Carriage Stage, Carriage Support Stage, and Addon Stage.
    • The Passthrough Corner Kit is used in the Carriage Support Stage and Outer Stage.
    • The External Corner Kit is used in the Addon Stage and Outer Stage.
    • The Crossbar Kit joins stages with External Corners together to increase rigidity.

    To learn how to assemble and use each corner kit, check out the Powered Elevator Assembly Guide.

  • Powered Elevator Internal Corner Kit (am-5542):

    • 4 - 8 mm Flat Washer (am-1009)
    • 2 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
    • 2 - 10-32 Nylock Jam Nut (am-1063)
    • 20 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
    • 2 - M8 x 1.25 Nylock Nut (am-1509)
    • 2 - 0.192 in. ID 0.313 in. OD 2.000 in. Long Aluminum Spacer (am-1582)
    • 1 - 0.330 in. ID 0.470 in. OD 1.180 in. Long Nylon Spacer (am-1610)
    • 2 - 0.319 in. ID 0.438 in. OD 0.313 in. Long Aluminum Spacer (am-1678)
    • 2 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
    • 2 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
    • 2 - M8 Cam Follower (am-5545)
    • 2 - Powered Elevator Internal Corner Bracket (am-5556)

    Powered Elevator Passthrough Corner Kit (am-5543):

    • 2 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
    • 2 - 10-32 Nylock Jam Nut (am-1063)
    • 16 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
    • 4 - 0.192 in. ID 0.375 in. OD 1.000 in. Long Aluminum Spacer (am-3876)
    • 2 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
    • 2 - Powered Elevator Passthrough Corner Bracket (am-5557)

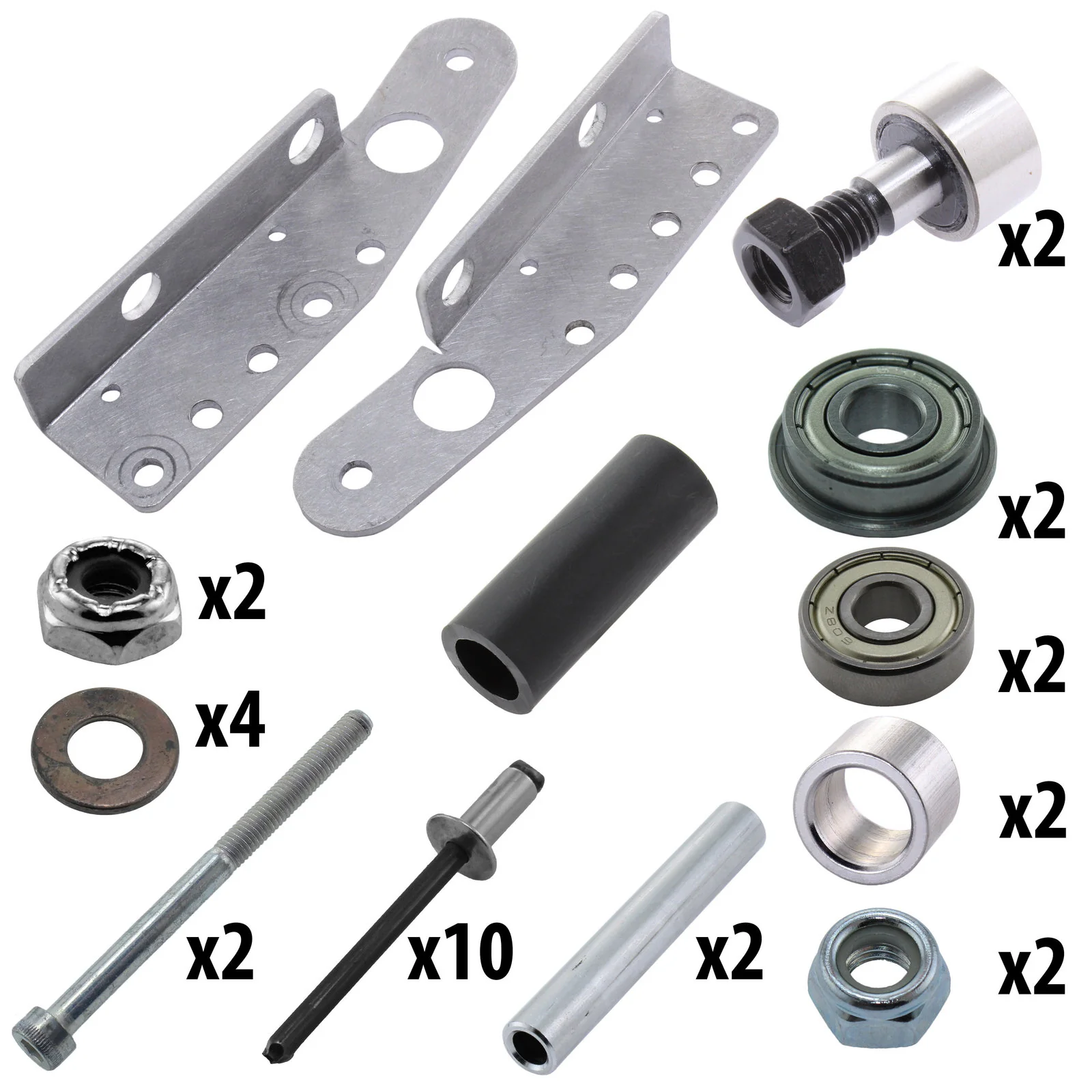

    Powered Elevator External Corner Kit (am-5544):
