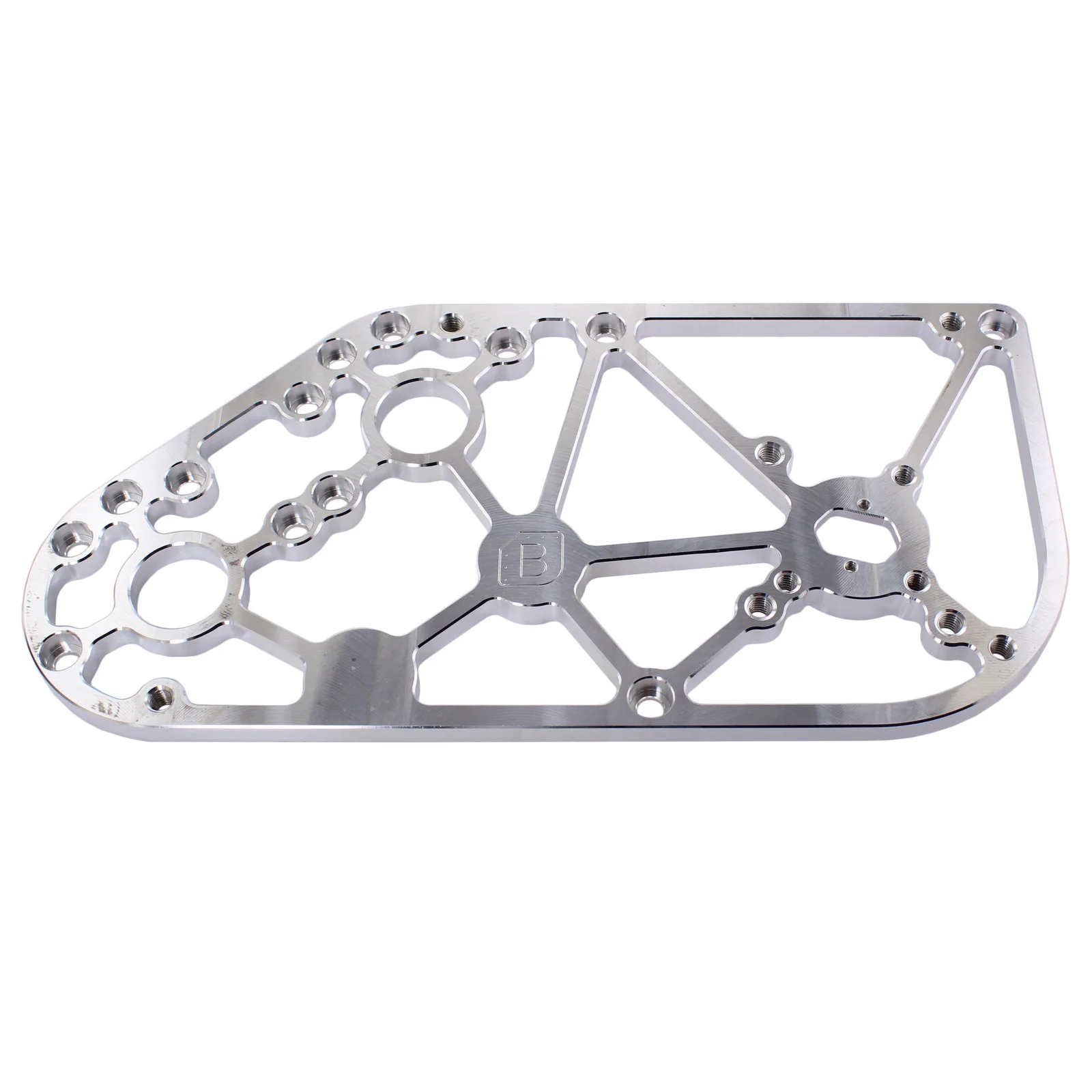

SDS MK4n Motor Plates
- Description
-
Use 10-32 screws to mount it to a drivetrain frame.
IMPORTANT Be sure to select the correct plate layout for your needs.
The MK4n Swerve Module does not have a symmetric footprint and is instead mirrored. The two layouts are known as "A" and "B". An "A" plate will only work with a MK4n "A" Swerve Module, and a "B" plate will only work with a MK4n "B" Swerve Module. All parts of the MK4n Swerve Module are common between the "A" and "B" layouts, except for the Motor Plate and Main Plate. Those plates are engraved with "A" or "B", depending on their layout.
The following illustrates the two swerve module layouts in a typical drivetrain:
-
- Length: 8 in.
- Material: Aluminum
- Mounting Hardware: 10-32
- Thickness: 0.25 in.
- Weight: 0.23 lbs.
- Width: 4 in.
