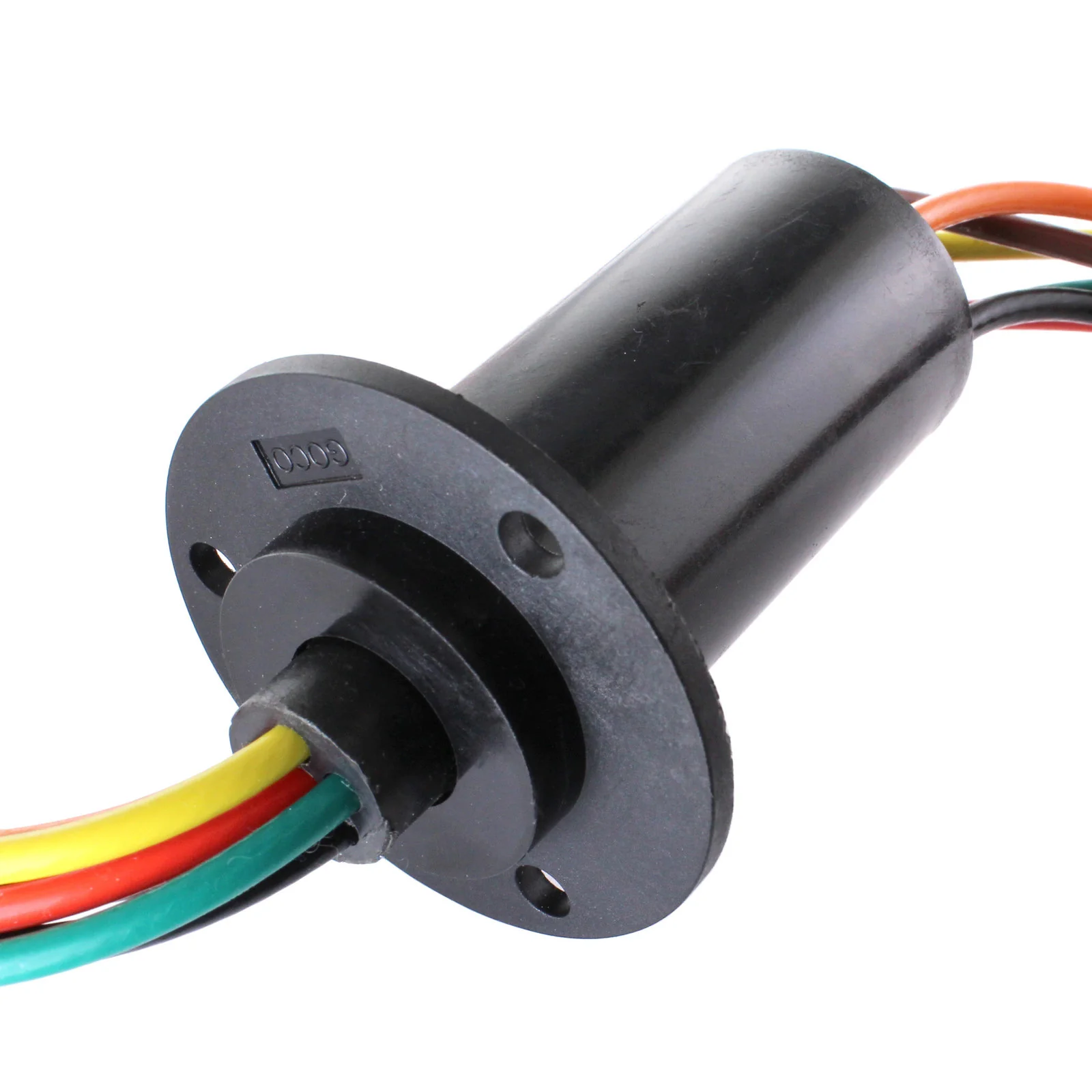

Slip Ring Connector
Slip rings are used to transfer power from a stationary structure to a rotating structure, without a mess of tangled wires.
- Description
-
Making a spinny thing that needs a power supply path from the not-spinny part to the spinny part? Well, have we got the answer for you. These are particularly useful for turrets or wind turbines and do not contain mercury or liquid.
2 Wire Slip Ring:
- Three 0.125 in. holes on an 0.70 in. bolt circle to mount
- For use in FRC
- This is legal for FRC per the 2023 rules, please read the rules and verify
6 Wire Slip Ring:
- Three #10 holes on a 1.65 in. bolt circle to mount
- For use in FRC
- This is legal for FRC per the 2023 rules, please read the rules and verify
- Before installation, please refer to R624 for wiring guidelines on which wires may be used for what
-
- Cable Length: 250 mm
- Channels: 2, 6
- Operating Temperature: -30°C to 80°C
- Rated Current: 30 A per Channel
- Rated Voltage: 220 VAC/VDC
- Rotating Speed: 50 RPM
- Wire Gauge: 12 AWG
Select Connection
From $25.00
Slip Ring Connector—
$25.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Slip rings are used to transfer power from a stationary structure to a rotating structure, without a mess of tangled wires.
- Description
-
Making a spinny thing that needs a power supply path from the not-spinny part to the spinny part? Well, have we got the answer for you. These are particularly useful for turrets or wind turbines and do not contain mercury or liquid.
2 Wire Slip Ring:
- Three 0.125 in. holes on an 0.70 in. bolt circle to mount
- For use in FRC
- This is legal for FRC per the 2023 rules, please read the rules and verify
6 Wire Slip Ring:
- Three #10 holes on a 1.65 in. bolt circle to mount
- For use in FRC
- This is legal for FRC per the 2023 rules, please read the rules and verify
- Before installation, please refer to R624 for wiring guidelines on which wires may be used for what
-
- Cable Length: 250 mm
- Channels: 2, 6
- Operating Temperature: -30°C to 80°C
- Rated Current: 30 A per Channel
- Rated Voltage: 220 VAC/VDC
- Rotating Speed: 50 RPM
- Wire Gauge: 12 AWG
