Tube Roller Inserts

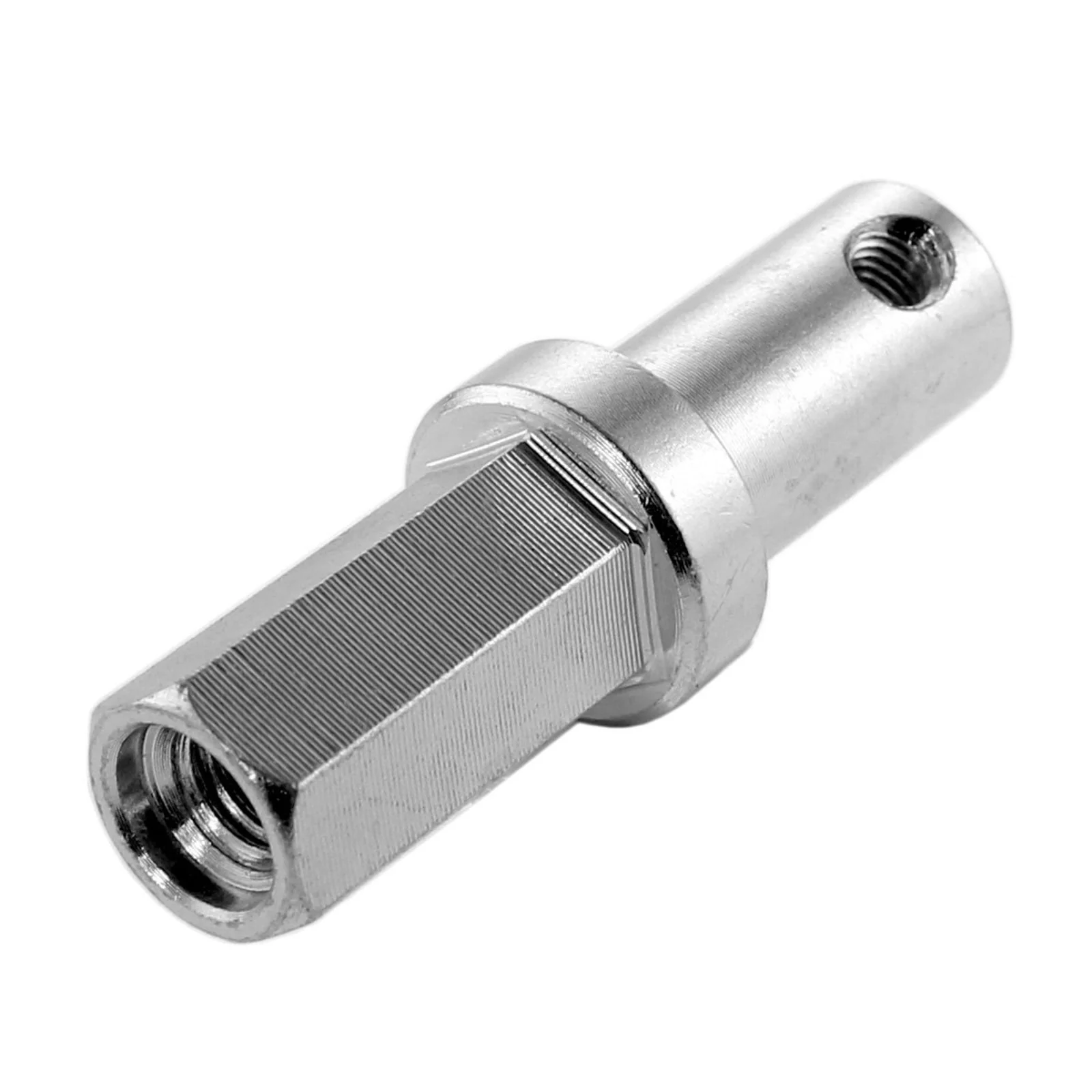

These inserts are used to mount and drive the AndyMark Tube Roller.
- Description
-
The AndyMark Tube Roller is a customizable kit that allows teams to have a long roller of a length that is specific to their need. These inserts are used to mount and drive the roller. The hex end insert has one inch of 1/2 in. hex exposed to place motion components on such as pulleys or sprockets to be driven by a motor. Both the idle and hex ends have 5/16-18 threads in them to accept a 3/8 in. diameter shoulder bolt to mount the assembly in 3/8 in. round bearings. -
- Finish: Zinc Plated
- Hex Side Length: 1 in.
- Hex Side Width: 0.5 in.
- Material: Steel
- Round Side Length: 1 in.
- Round Side Width: 0.515 in.
Select Option
From $8.30
Tube Roller Inserts—
$8.30
