35 Series Bearing Bore Plate Sprockets

Product image 1
1 / 10

35 Series Bearing Bore Plate Sprockets

Plate Sprockets for #35 roller chain
  • Description

  • We have 8 different offerings of our 35 Series Plate Sprockets. These are perfect for meshing with roller chain and finally getting that-thing-that-you-need-to-spin moving!

    These aluminum sprockets work perfectly with any of our 6 hole hubs and mesh with #35 roller chain. They also work with other build systems that use a 2 in. bolt circle for mounting. The larger versions also have a mounting pattern compatible with 2x1 box tube usefull for making arms.

    Note: Despite the prints, at this time tooth alignment to holes is not controlled on these sprockets.

    Part Number Tooth Count Bore Pitch Diameter (in.) Outside Diameter (in.)

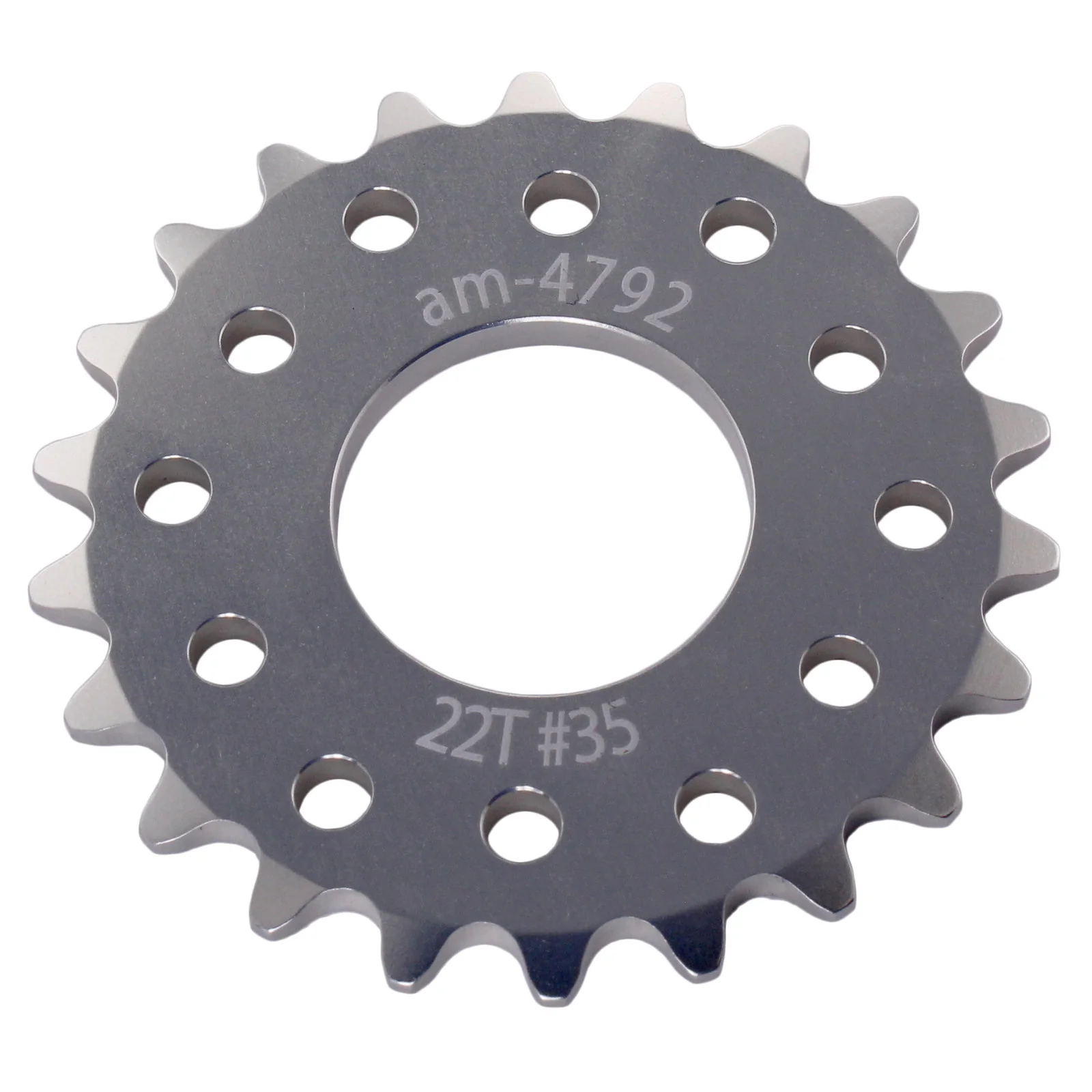

    am-4792 22 1.125 in 2.635 2.840

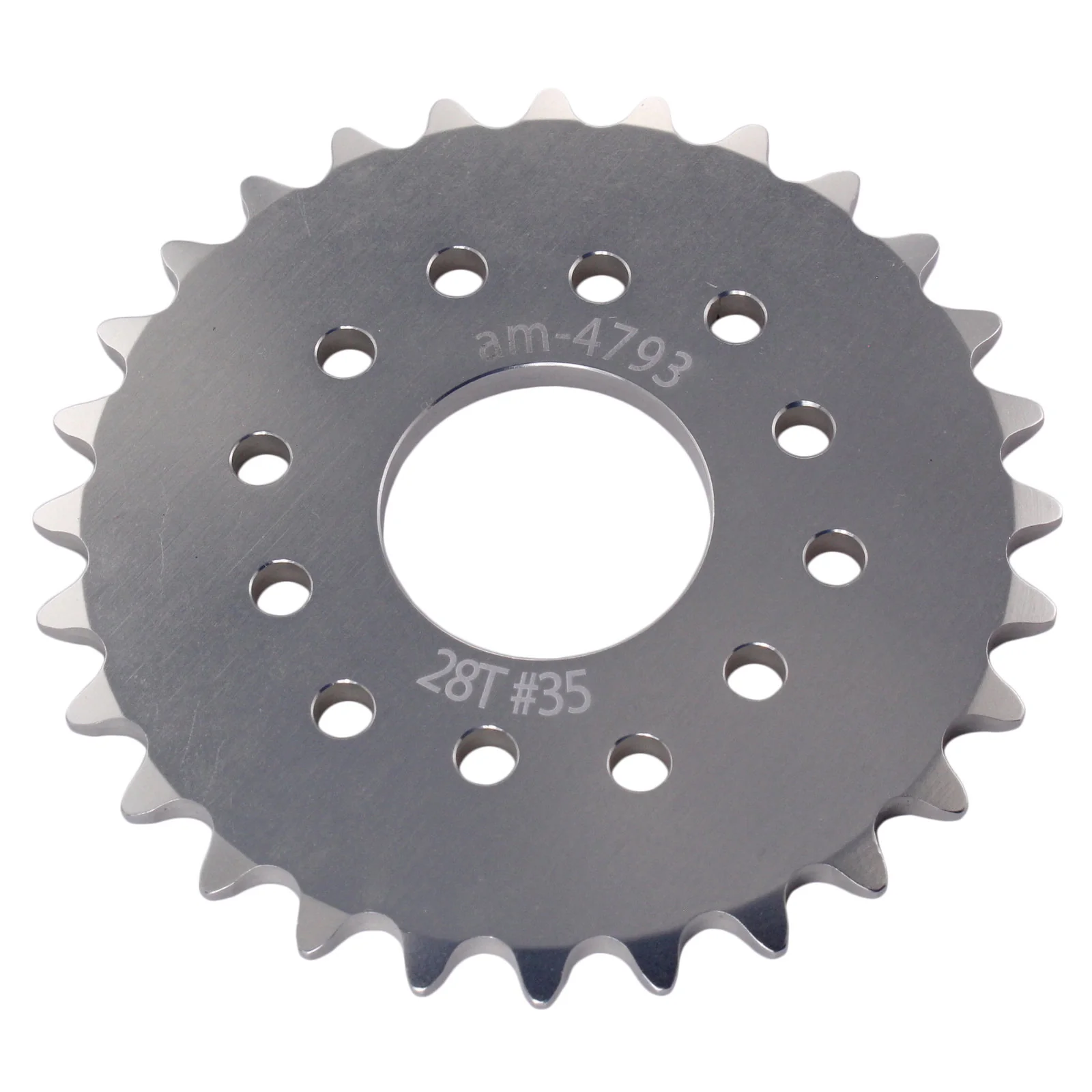

    am-4793 28 1.125 in 3.349 3.558

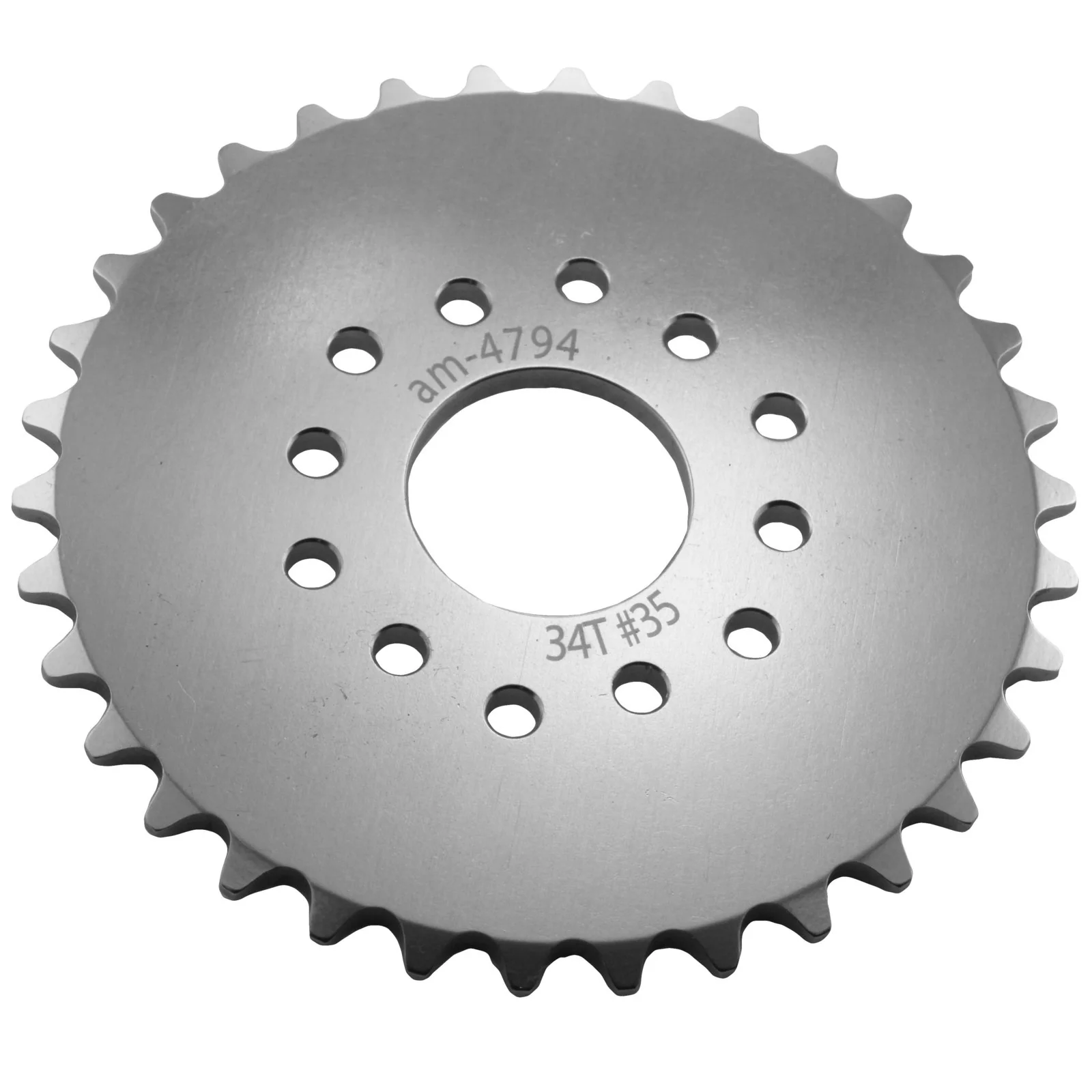

    am-4794 34 1.125 in 4.064 4.276

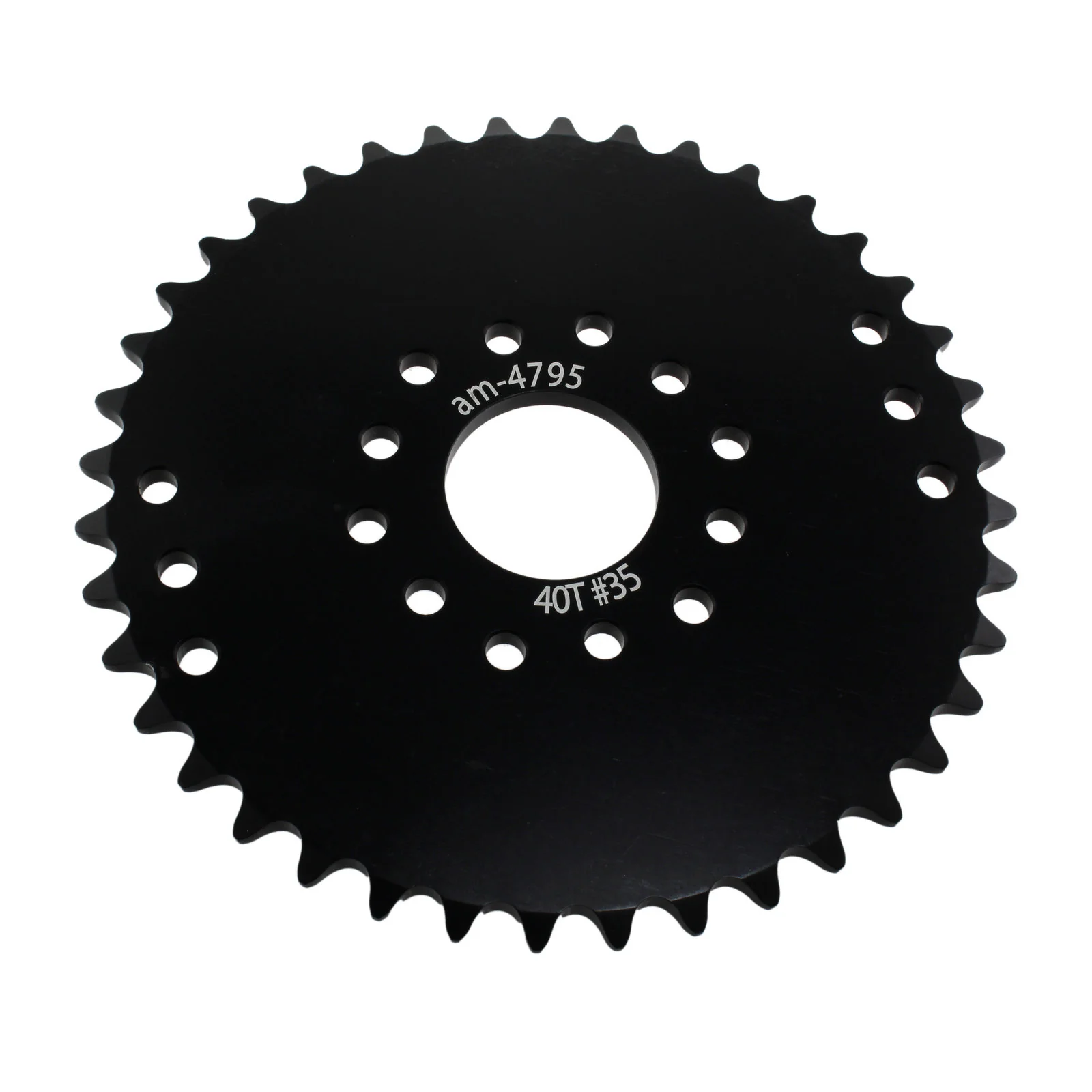

    am-4795, am-4795_black 40 1.125 in 4.780 4.993

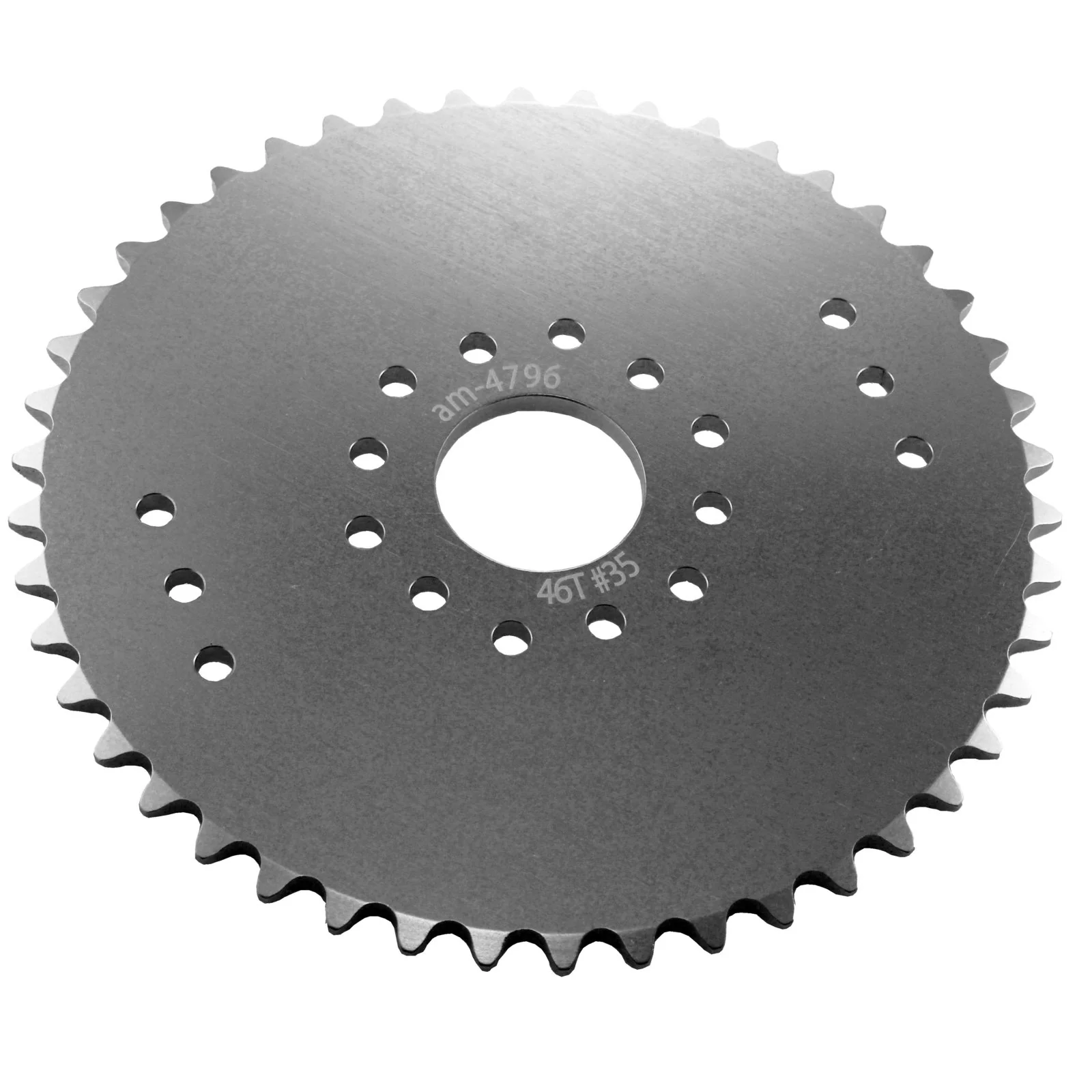

    am-4796 46 1.125 in 5.495 5.710

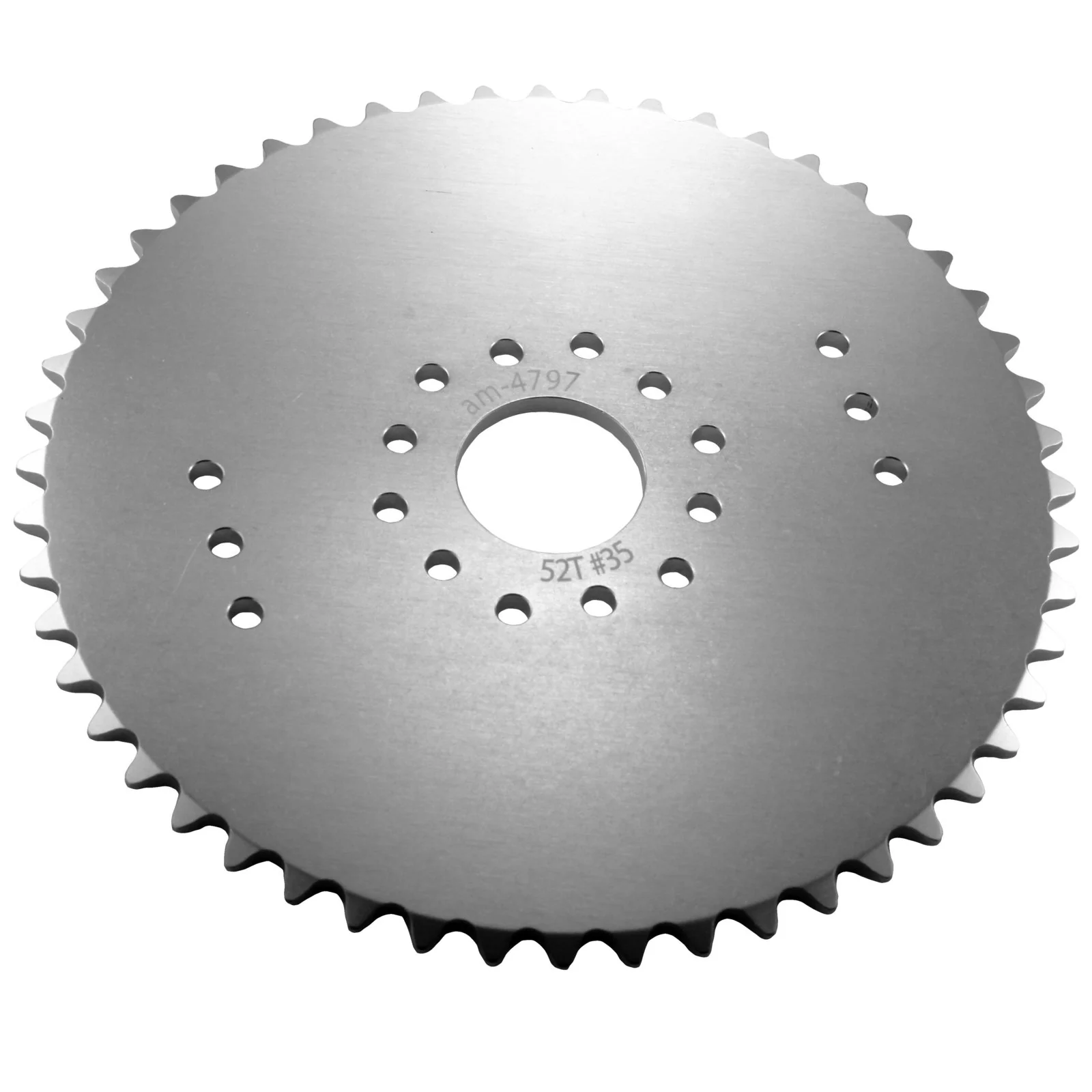

    am-4797 52 1.125 in 6.211 6.427

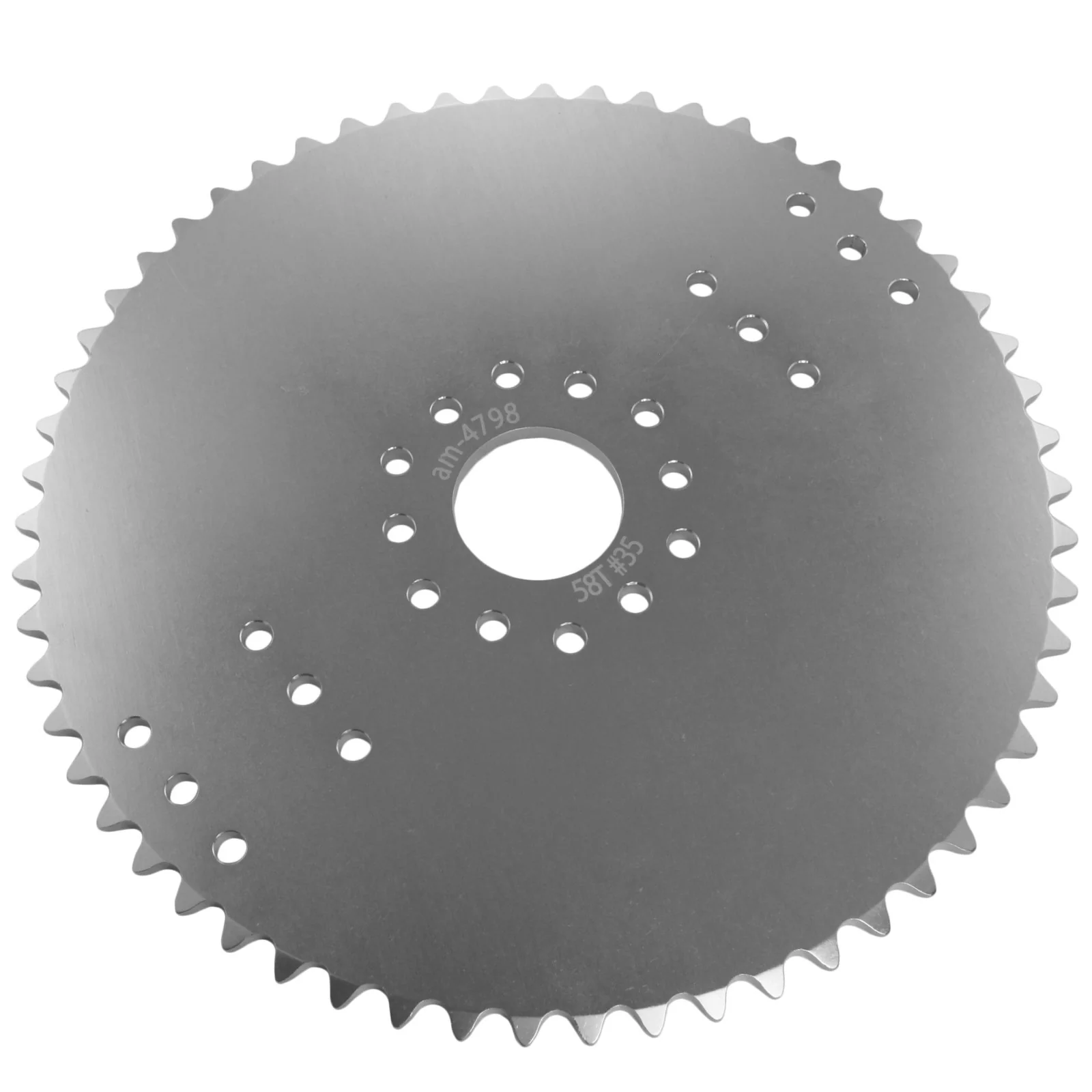

    am-4798 58 1.125 in 6.927 7.144

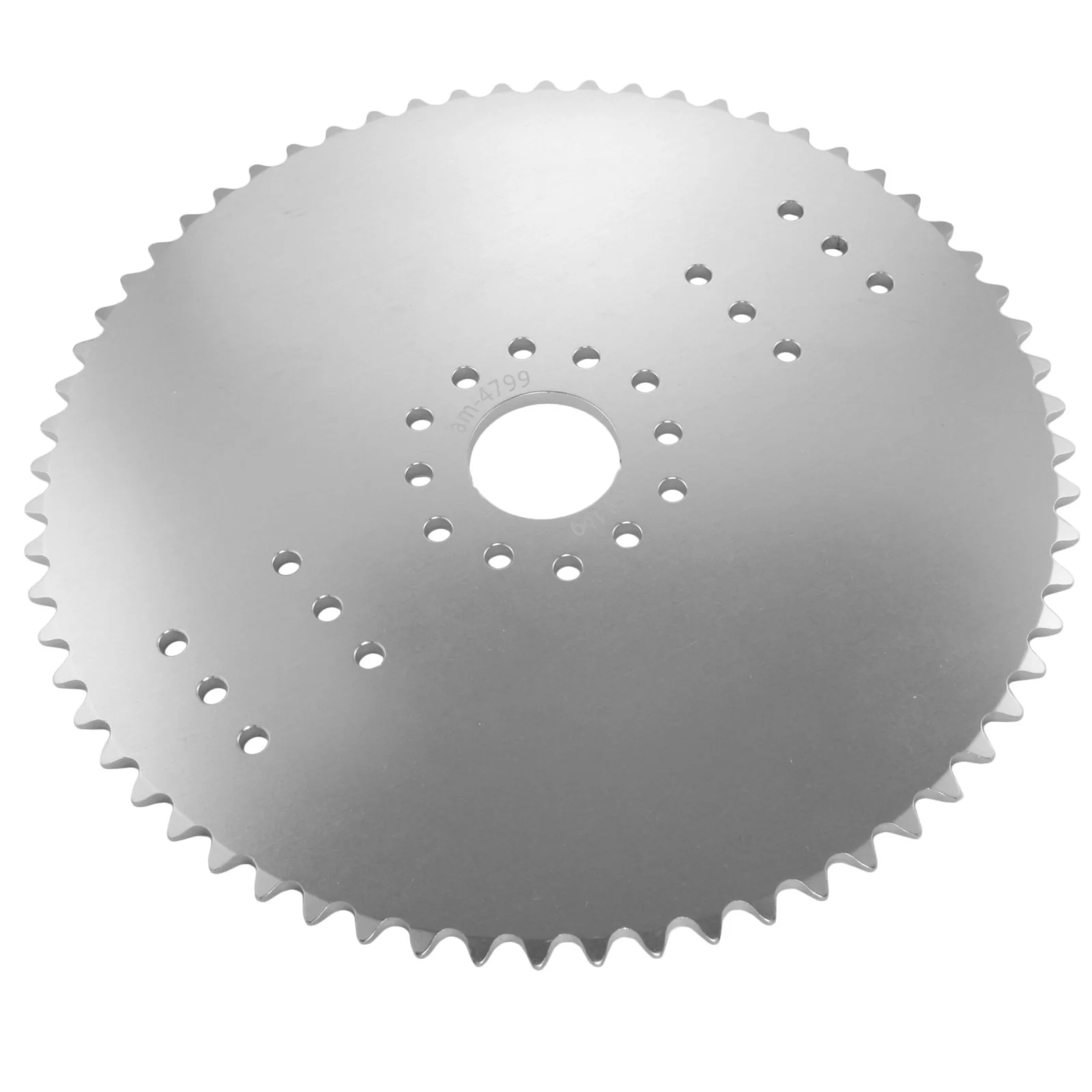

    am-4799 64 1.125 in 7.643 7.861
    • Bolt Circle: 0.201 in. diameter holes on a 1.875 in. diameter circle
    • Chain Series: 35
    • Inside Diameter: 1.125 in.
    • Material: 7075 Aluminum
    • Thickness: 0.157 in.
