E4T OEM Miniature Optical Encoder Kit

Product image 1

E4T OEM Miniature Optical Encoder Kit

The E4T miniature optical encoder provides digital quadrature encoder feedback for high volume, limited space applications.
  • Description
  • What's in the Box?
  • The E4T is designed to be a drop in replacement for the E4P that offers higher maximum speed and increased output drive.

    Pin-Out:

    • Pin 1: +5VDC
    • Pin 2: A Channel
    • Pin 3: Ground
    • Pin 4: B Channel

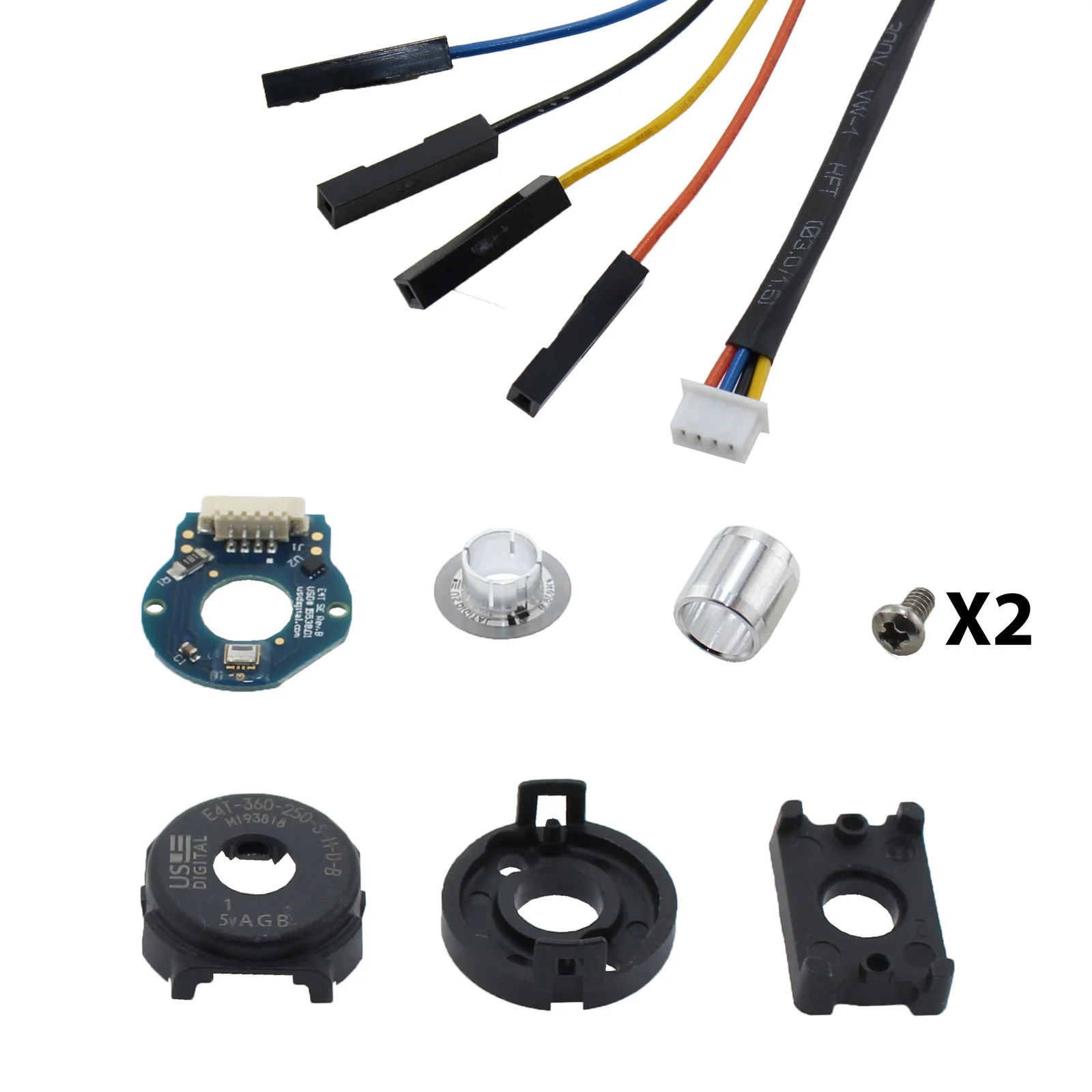

  • Included Items:

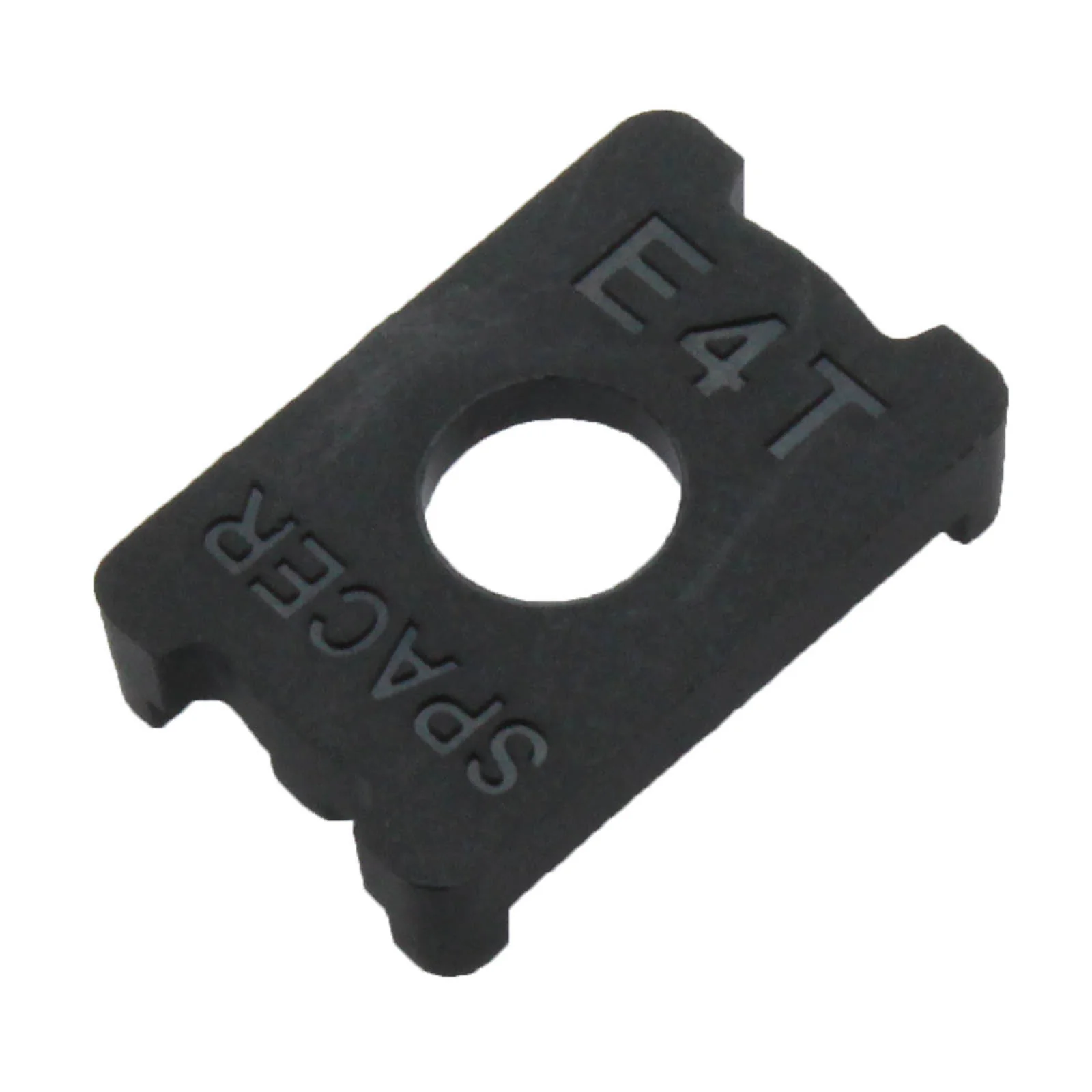

    • 1 - Spacer Tool for US Digital E4T 360-250 Encoder
    • 1 - E4T 360-250-S-H-D-B Encoder
    • 1 - Encoder Cable, 3' long (am-2269)

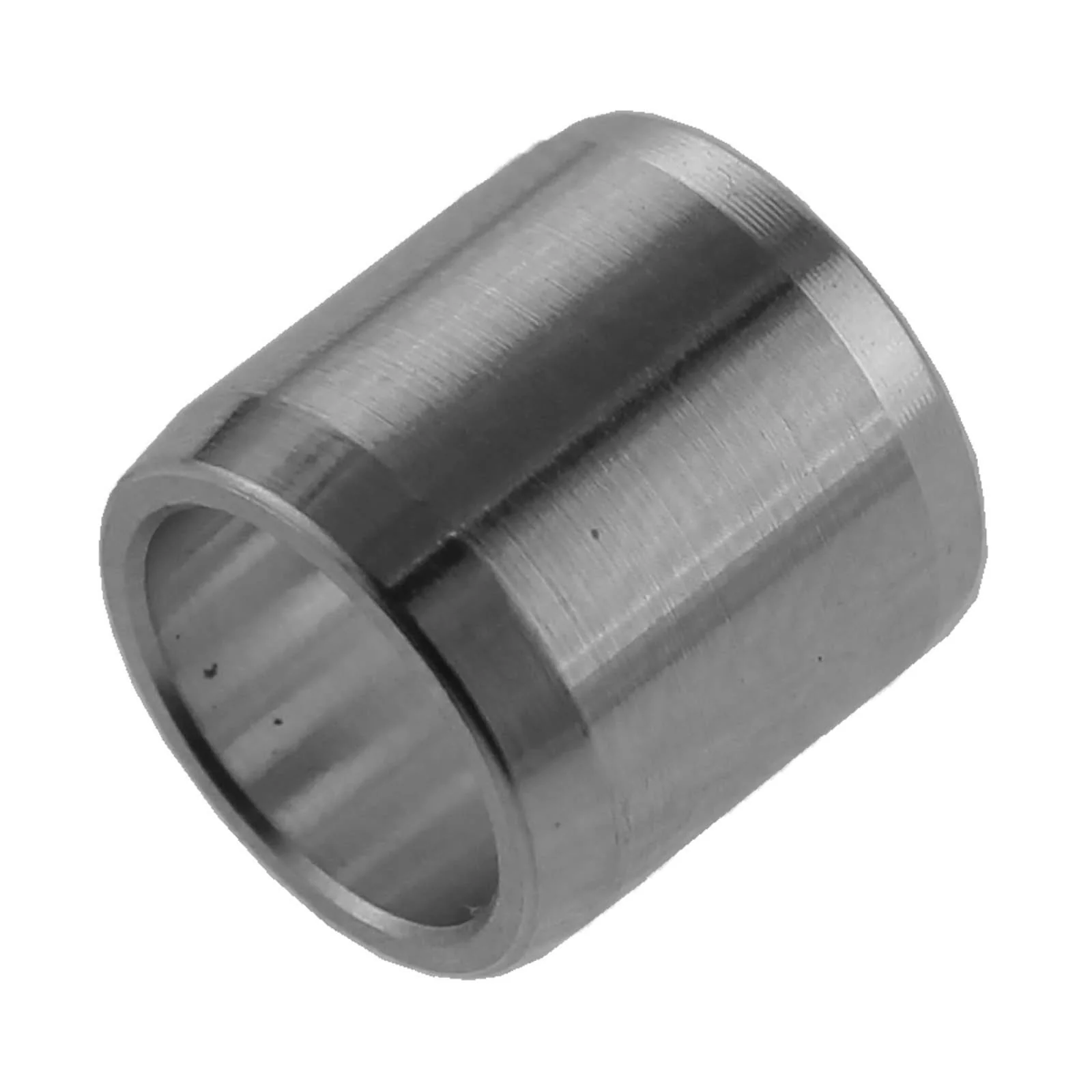

    • 1 - Centering Tool for E4T 360-250 Encoder
    • 2 - Philips Head Mounting Screws
    • Input Voltage: 5 VDC
    • Output: 360 CPR
$9.30

Original: $31.00

-70%
E4T OEM Miniature Optical Encoder Kit—

$31.00

$9.30
