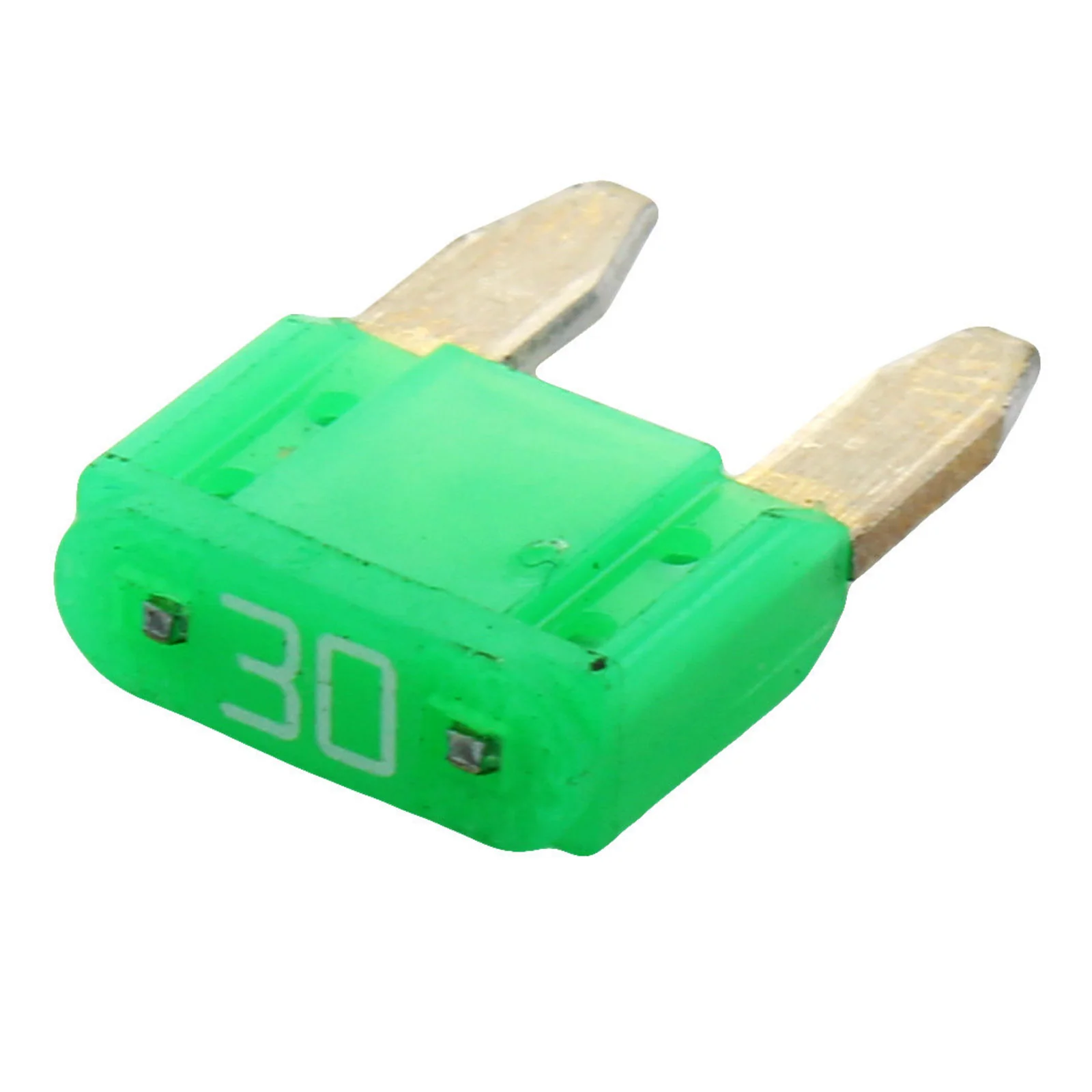

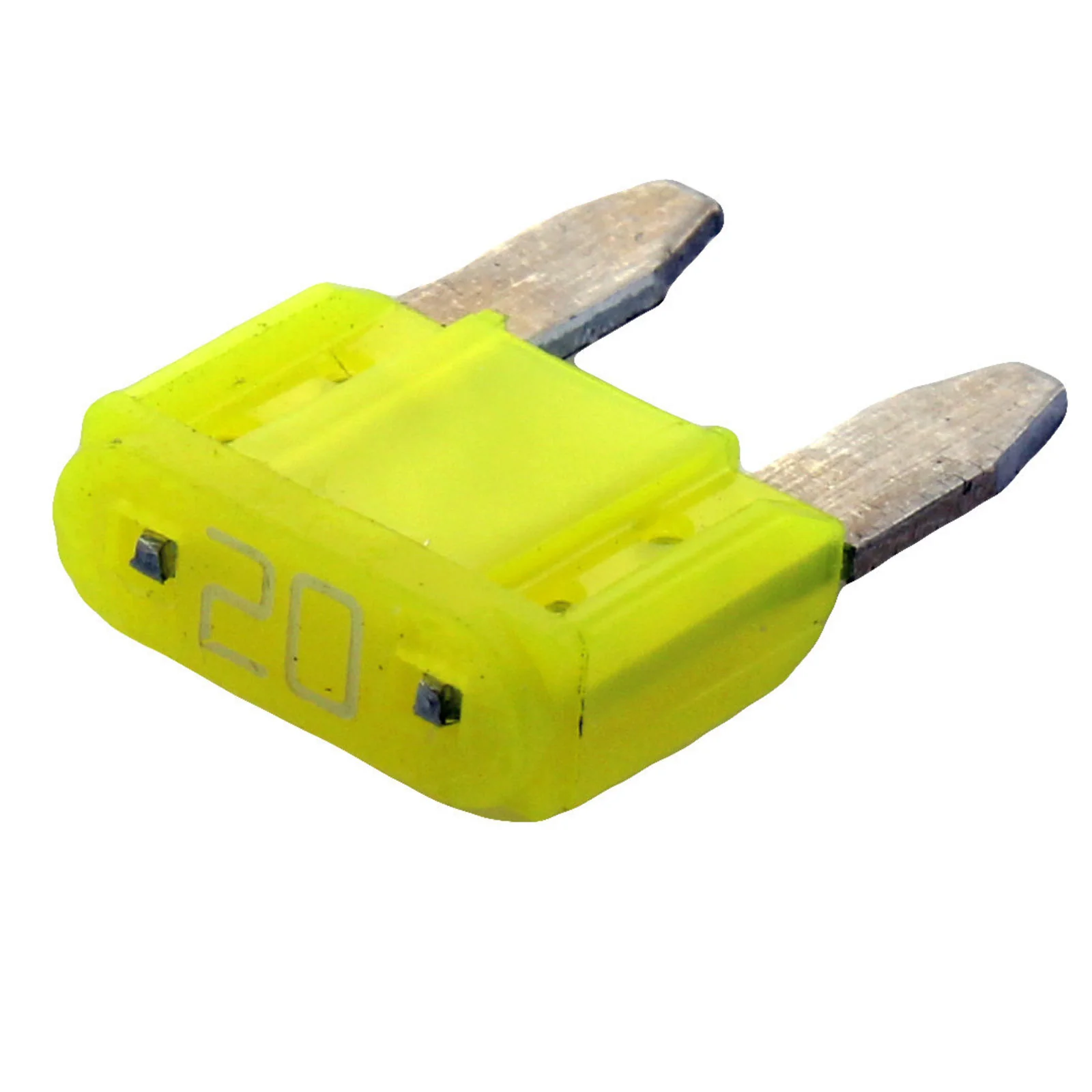

MINI Fuses
The MINIĀ® Fuse is the standard for vehicle circuit protection.
- Description
-
Its miniature design meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINIĀ® Fuse a recommended choice for protection.These mini fuses can be used in our Power Pole Distribution Board (am-3699), as well as a replacement in the Power Distribution Panel (am-2856)
-
- Blade Height: 7.5 mm
- Blade Length: 2.8 mm
- Blade Thickness: 0.825 mm
- Maximum Voltage: 32 V
- Overall Height: 16.3 mm
- Overall Length: 10.9 mm
- Overall Thickness: 3.8 mm
- Standards: SAE J2077
- Style: MINIĀ®, Blade Fuse
Select Amperage
From $0.27
Original: $0.91
-70%MINI Fusesā
$0.91
$0.27Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The MINIĀ® Fuse is the standard for vehicle circuit protection.
- Description
-
Its miniature design meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINIĀ® Fuse a recommended choice for protection.These mini fuses can be used in our Power Pole Distribution Board (am-3699), as well as a replacement in the Power Distribution Panel (am-2856)
-
- Blade Height: 7.5 mm
- Blade Length: 2.8 mm
- Blade Thickness: 0.825 mm
- Maximum Voltage: 32 V
- Overall Height: 16.3 mm
- Overall Length: 10.9 mm
- Overall Thickness: 3.8 mm
- Standards: SAE J2077
- Style: MINIĀ®, Blade Fuse
