REV SPARK MAX Brushless and Brushed DC Motor Controller
- Description
- What's in the Box?
-
Building on the robust foundation of the original, SPARK MAX incorporates advanced brushed and brushless DC motor control in a small and easy-to-use package with PWM, CAN, and USB connectivity.
Never before has an FRC motor controller featured a built-in USB interface for configuration and control. Users can test prototypes and tune parameters without needing the full control system. SPARK MAX is a true all-in-one controller that will push the envelope for teams.Features:
- Brushed and Sensored-brushless Motor Control: Drive brushless and brushed motors!
- Interfaces:
- PWM, CAN, USB: Drive the controller with PWM or CAN and configure the controller from your computer.
- USB Configuration and Control
- USB type C connector
- Rapid configuration with a PC
- Save/Load Configurations
- Realistic prototyping using the actual control parameters
- Smart Control Modes
- Closed-Loop Control
- Follower Mode
- Data Port (data port cable am-2617 not included)
- Analog Input
- Limit Switch Input
- Quadrature Encoder Input with Index
- Brushless DC Sensor Connector
- 3-phase Hall Sensors
- Motor Temperature Sensor
- Compatible with the Following Motors:
- NEO Brushless Motor
- NEO 550 Brushless Motor
- CIM Motors
- Redline Motors
Warranty:
Email [email protected] and include your AndyMark order number.
View documentation for this product on the REV website.
-
SPARK MAX (Standard):
- 1 - JST to PWM Cable for PWM Control
- 1 - JST to CAN Cable for CAN Control
- 1 - USB Type C to USB A Cable for controller configuration
- 1 - Data Port Cover to keep debris and dust out while not in use

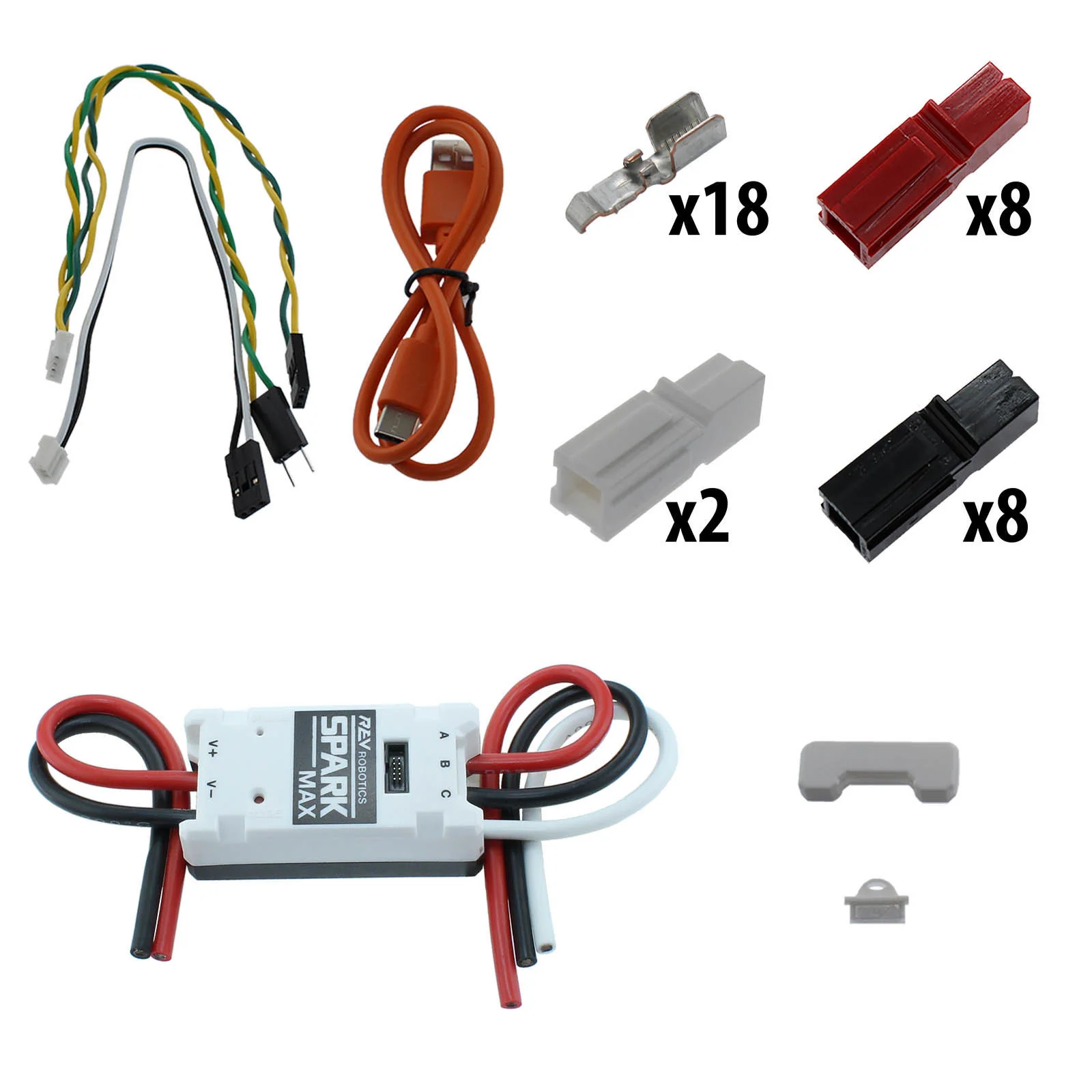

SPARK MAX (with Additional Connectors):
- Brushless Powerpole Kit (am-4268)
- 18 - PP45 Contacts
- 8 - Red Housings
- 8 - Black Housings
- 2 - White Housings
-
- Connector Type: JST-PH 4 Pin for CAN or PWM, USB Type C for Other Functions, JST-PH 6 Pin for Encoder, 10-Pin Data Port for Limit Switch and Other Functions
- Current: 60 A Continuous, 100 A Peak
- Frequency: 50-200 Hz Input, 20 kHz Output
- Gauge: 12 AWG
- Pulse Range: 500 us - 2500 us
- Voltage: 12 VDC Nominal, 5.5 V - 24 V Operational
- Weight: 0.25 lbs.
