NR Bevel Box

To optimize space, the output shaft of this Bevel Box is at right angle to the NeveRest motor.
  • Description
  • Specifications

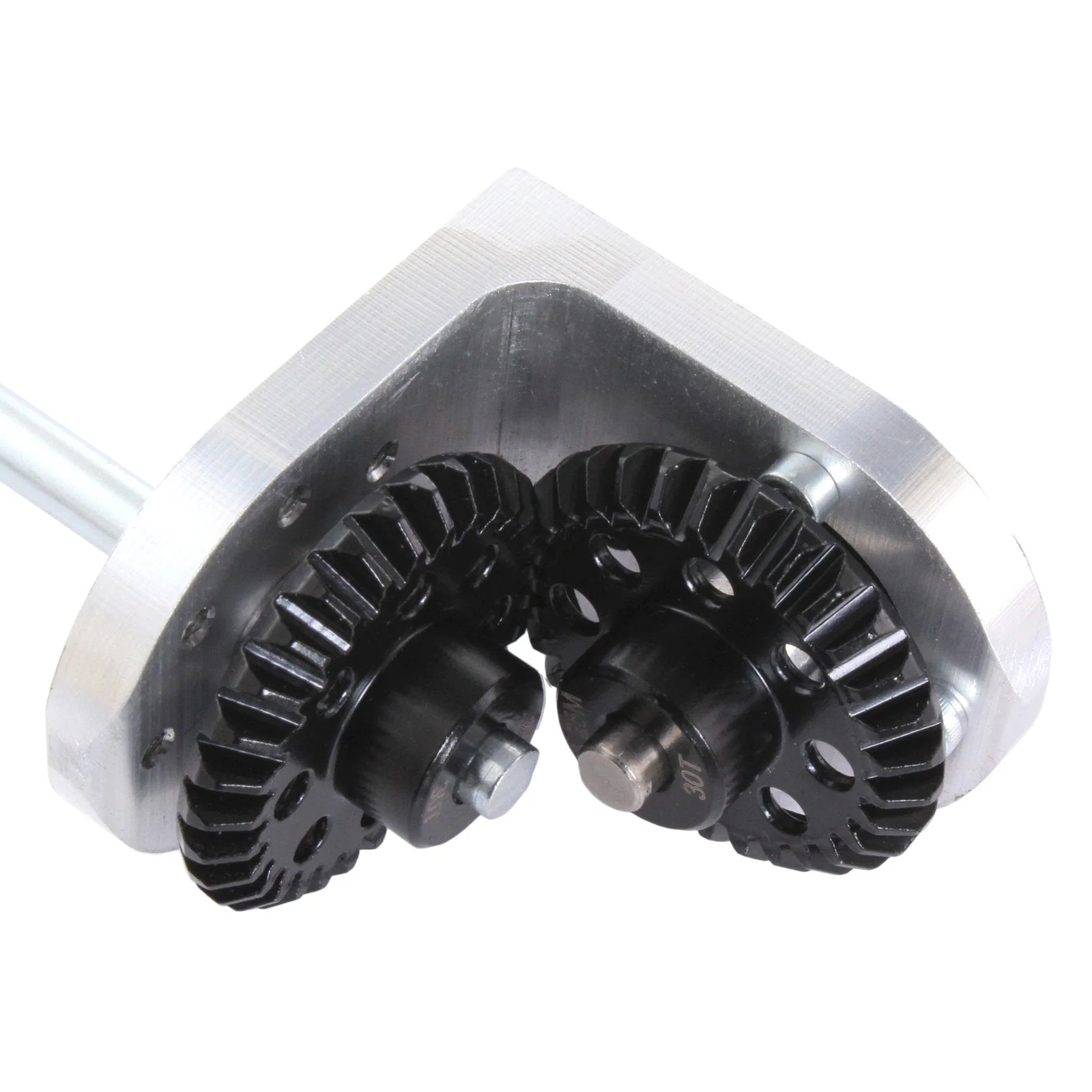

  • The NR Bevel Box was created to help optimize space inside of a robot. This gearbox can be mounted along the side of the robot structure because the output shaft of the Bevel Box is at a right angle to a NeveRest Orbital Motor, therefore taking up less space. The NR Bevel Box has a similar mounting pattern as our NeveRest Orbital Motors, allowing it to be a drop in replacement wherever you would install one of our orbital motors. The output shaft is adjustable, allowing you to optimize the length and position for every application.

    A 3D printable file of a protective cover is hosted in the Documents section below. This helps prevent anything from being pinched in the gears, such as wires or fingers. Additionally, it allows users to install a 6 mm x 8 mm bushing (am-1289) in the back to further support the 6 mm D shaft.

    Motor Options

    • No motor - Mount your own NeveRest Orbital motor to the NR Bevel Box
    • NeveRest Orbital 3.7 to 1 (~1784 RPM)
    • NeveRest Orbital 13.7 to 1 (~482 RPM)
    • NeveRest Orbital 19.2 to 1 (~344 RPM)
    • NeveRest Orbital 50.9 to 1 (~130 RPM)
    • NeveRest Orbital 263.7 to 1 (~25RPM)

    Shaft Length

    • 36 mm D Shaft
    • 100 mm D Shaft
    • 175 mm D Shaft
    • 450 mm D Shaft
    • 3 in. 3/8 in. Hex Shaft
    • Gearbox Height: 2 in.
    • Gearbox Length: 2 in.
    • Gearbox Output: 6 mm D, 3/8 in. Hex
    • Gearbox Width: 1.5 in.
    • Mounting Pattern: (8) M3 tapped holes on a 28 mm bolt circle
Select Motor
Select Shaft Length
From $19.50

Original: $65.00

-70%
NR Bevel Box—

$65.00

$19.50
