The PicoBox gearboxes are designed specifically for FIRST Tech Challenge teams, built to work with a base 16mm hole pattern.

• Description
• Gearbox Ratios
• Specifications
• Documentation

• The PicoBox gearboxes are designed specifically for FIRST Tech Challenge teams. These highly configurable gearboxes are a robust solution for teams to make fine adjustments to the output speed and torque of drivetrains, mechanisms and more. All PicoBox gearboxes are designed to work with other building systems that FIRST Tech Challenge teams are familiar with, because they are built to work around a base 16 mm center-to-center hole pattern. The flanges on the PicoBox gearboxes are reversible while maintaining a base 16 mm hole pattern.

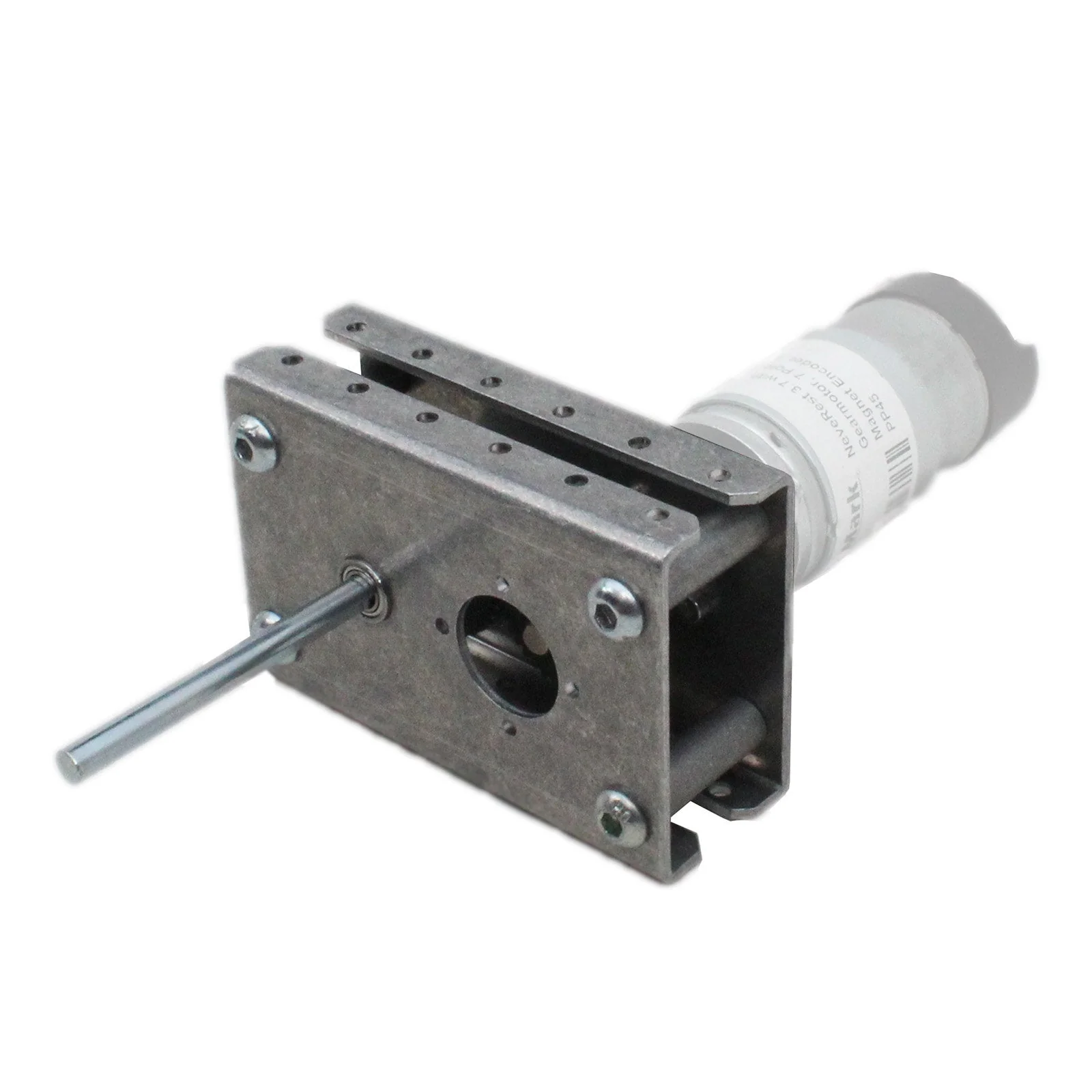

  The PicoBox MEO is a single reduction, single motor input gearbox that utilizes steel 32DP gears. This gearbox accepts one NeveRest 3.7 motor as it's input, and has a robust steel 6 mm D shaft for it's output.

  The MEO is named after Mid Earth Orbit. Medium Earth orbits range in altitude from 2,000 km (1,240 miles) to just below geosynchronous orbit at 35,786 kilometers (22,236 mi). Also known as an intermediate circular orbit. These are "most commonly at 20,200 kilometers (12,600 mi), or 20,650 kilometers (12,830 mi), with an orbital period of 12 hours. For more information about orbits, go here!

  Motor Input:
  The PicoBox Solo is not compatible with the NeveRest Motor Only (am-3104) or the NeveRest Classic series of gearmotors.
  The PicoBox MEO is designed specifically for the NeveRest Orbital series of gearmotors.

  Product Usage:
  All AndyMark gearboxes require grease for proper operation and long life. We suggest using our red tacky grease, am-2768. We also encourage that the user powers the gearbox continuously for 30 minutes without grease to allow the gear teeth to wear in. While we do design with short runtimes in mind, this 'run in' period for smooth gearbox operation, is recommended. Once this is completed, thorough grease of the gear teeth periodically to ensure smooth operation.

  Individual Components that make up this Assembly:

  • 2 - PicoBox MEO Plate (am-3475)
  • 2 - 6x12x4 Flanged Bearing (am-3377)
  • 1 - 6 mm D Bore Double Boss Nub w/Set Screw (am-3215a)
  • 1 - 6 mm D Bore Single Boss Nub w/Set Screw (am-3443a)
  • 1 - 100 6 mm D Shaft 100 mm (am-3226-100)
  • 1 - 35T gear for Picobox (am-3408)
  • 2 - 40T gear for Picobox (am-3407)
  • 1 - 45T gear for Picobox (am-3409)
  • 4 - Picobox Spacer (am-3406)
  • 1 - 12.7 mm OD x 6.15 mm ID x 9 mm Aluminum spacer (am-3426)
  • 4 - 1/4-20 x 1 3/4 in. Hex Head Screw
  • 4 - 1/4-20 Nylock jam nut (am-1102)
  • 4 - M3-0.5x6 mm SHCS (am-1254)
  • 8 - 6-32x1/2" Hex Head Screw (am-1436)
  • 1 - Red Tacky Grease (am-2768)
  The PicoBox MEO does not include a NeveRest Orbital Gearmotor.

  If you need the output shaft to be a 1/2 in. Hex, check out the 6 mm D to 0.5 in. Hex-Shaft Adapter
•
  Please contact [email protected] if you do not see a Ratio Table
• • Motor Input: NeveRest Orbital
  • Motor Quantity: 1
  • Overall Depth With Motor: ~ 198 mm
  • Overall Height: 64 mm
  • Overall Length: 96 mm
  • Ratio: 1:0.78, 1:1, 1:1.28
  • Weight: 0.76 lbs.
