2 x 1 Walnut Extrusion Different Lengths

Walnut is an easy-to-use structural extrusion perfect for building strong, 90 degree joints without gussets.
  • Description
  • Specifications

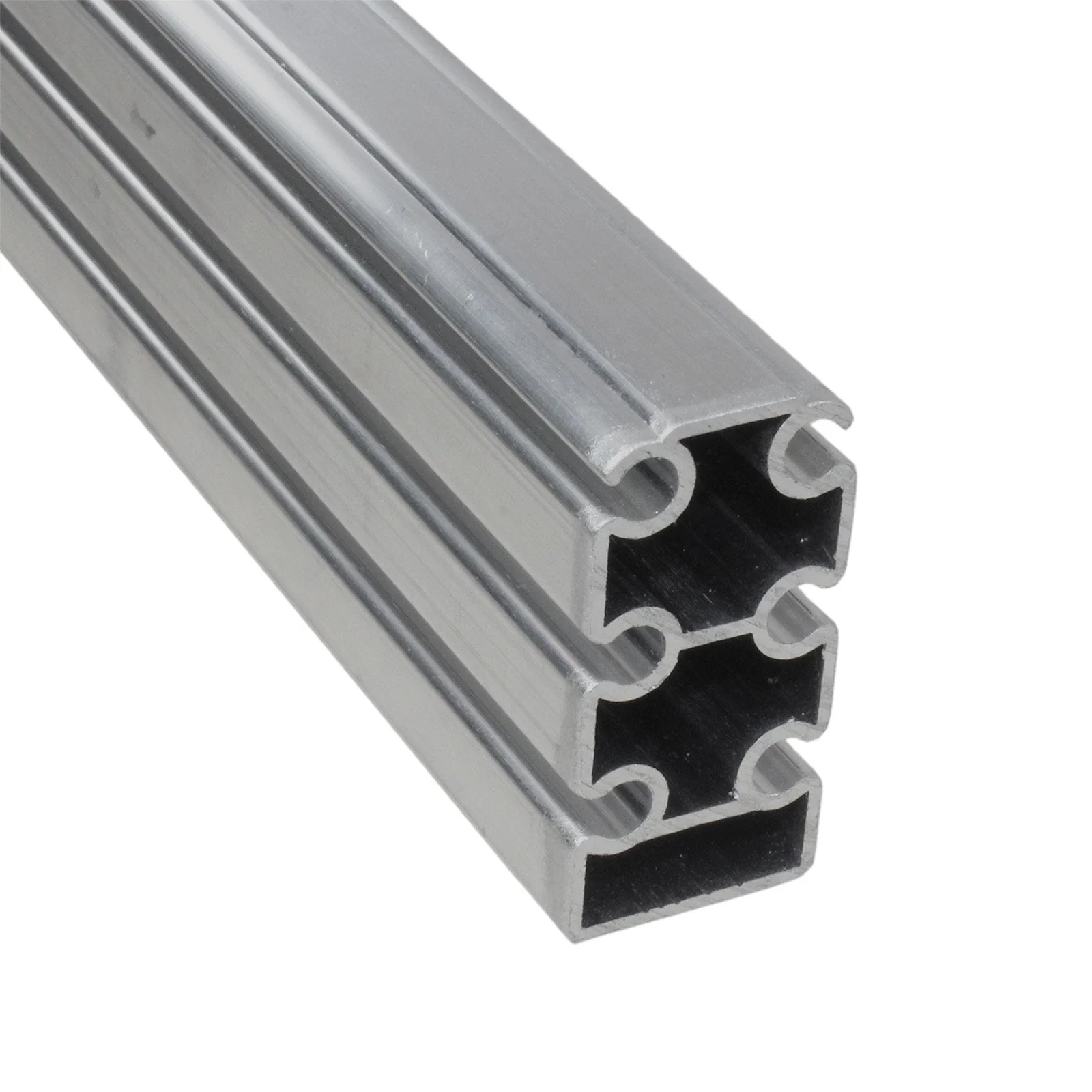

  • Walnut Extrusion (am-3478) is the latest iteration of the nut-themed structural extrusion line. It follows the design standards of Peanut Extrusion and expands them to a 2x1 profile.

    The profile has an end profile of 6 holes for 1/4-20 thread-forming screws on a 5/8 in. square grid pattern. The added rib supports are positioned to flank the pass-through bolts that thread into the adjoining extrusion. These ribs provide extra strength and prevent the side walls of the Walnut from being crushed by over tightening these bolts.

    The anodizing process may result in colors that are not exact to the reference photo. FED-STD-595 is a color description system. These anodized products can be described by this system as follows:
    Red: 31310-31136

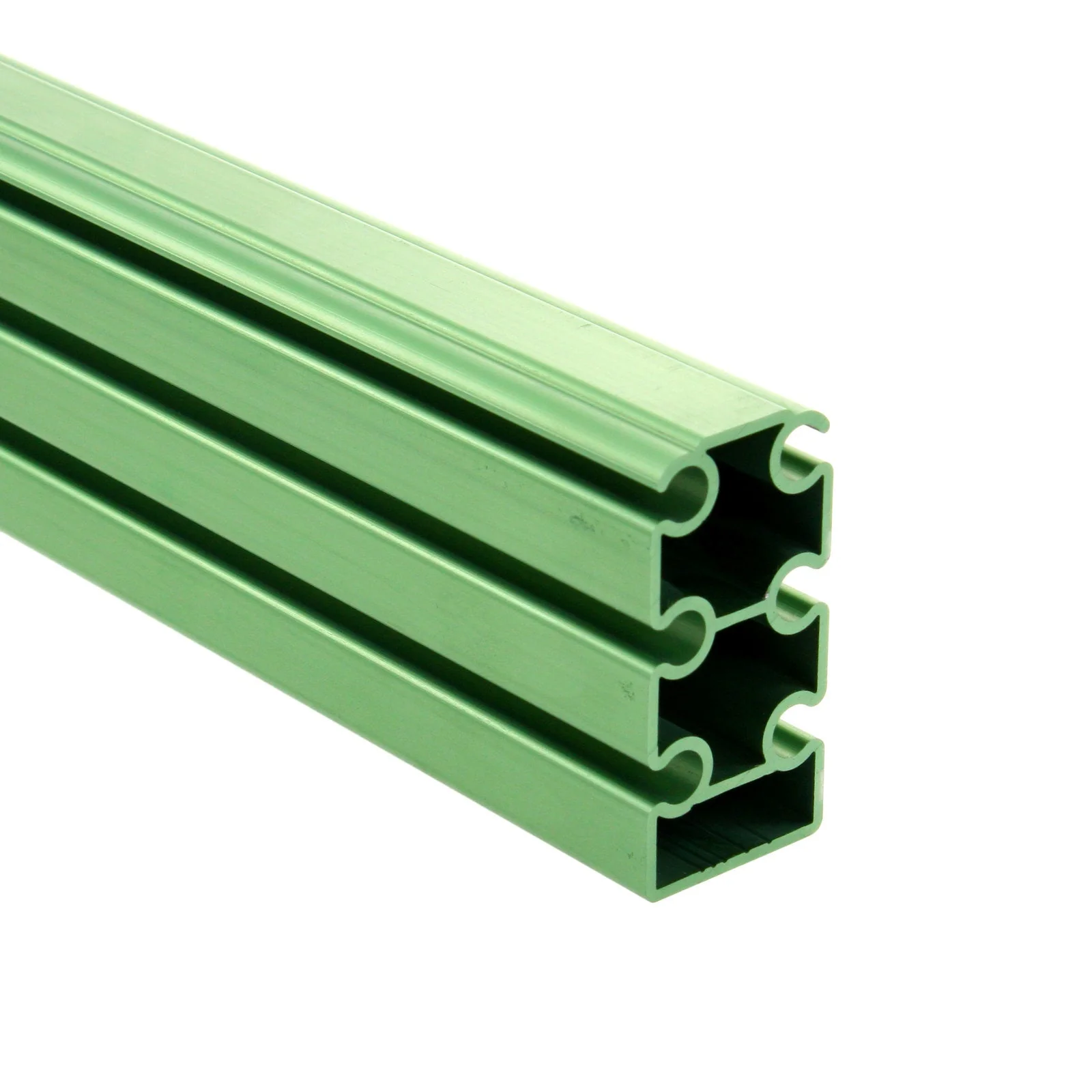

    Green: 24449-24272

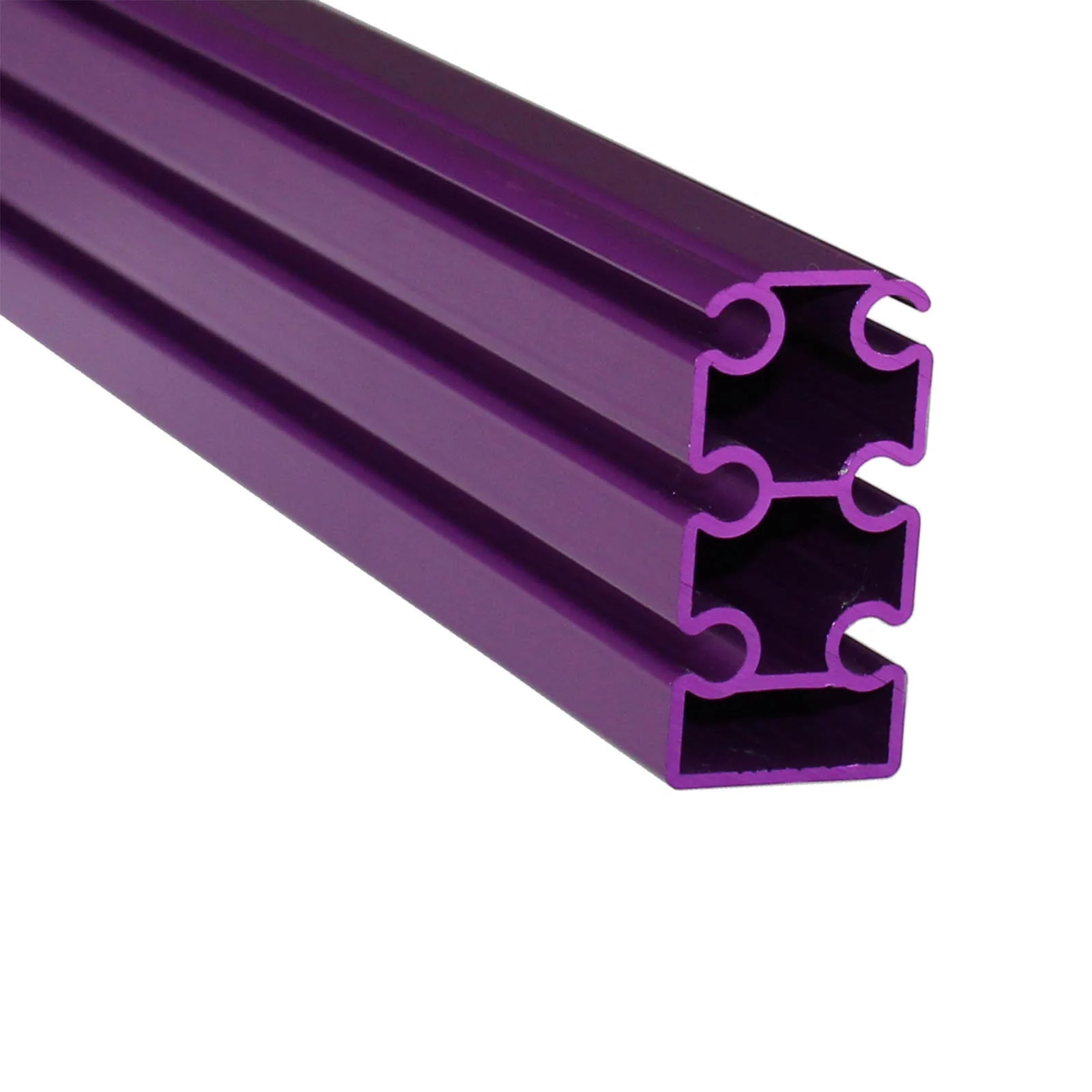

    Violet: 27142-27144

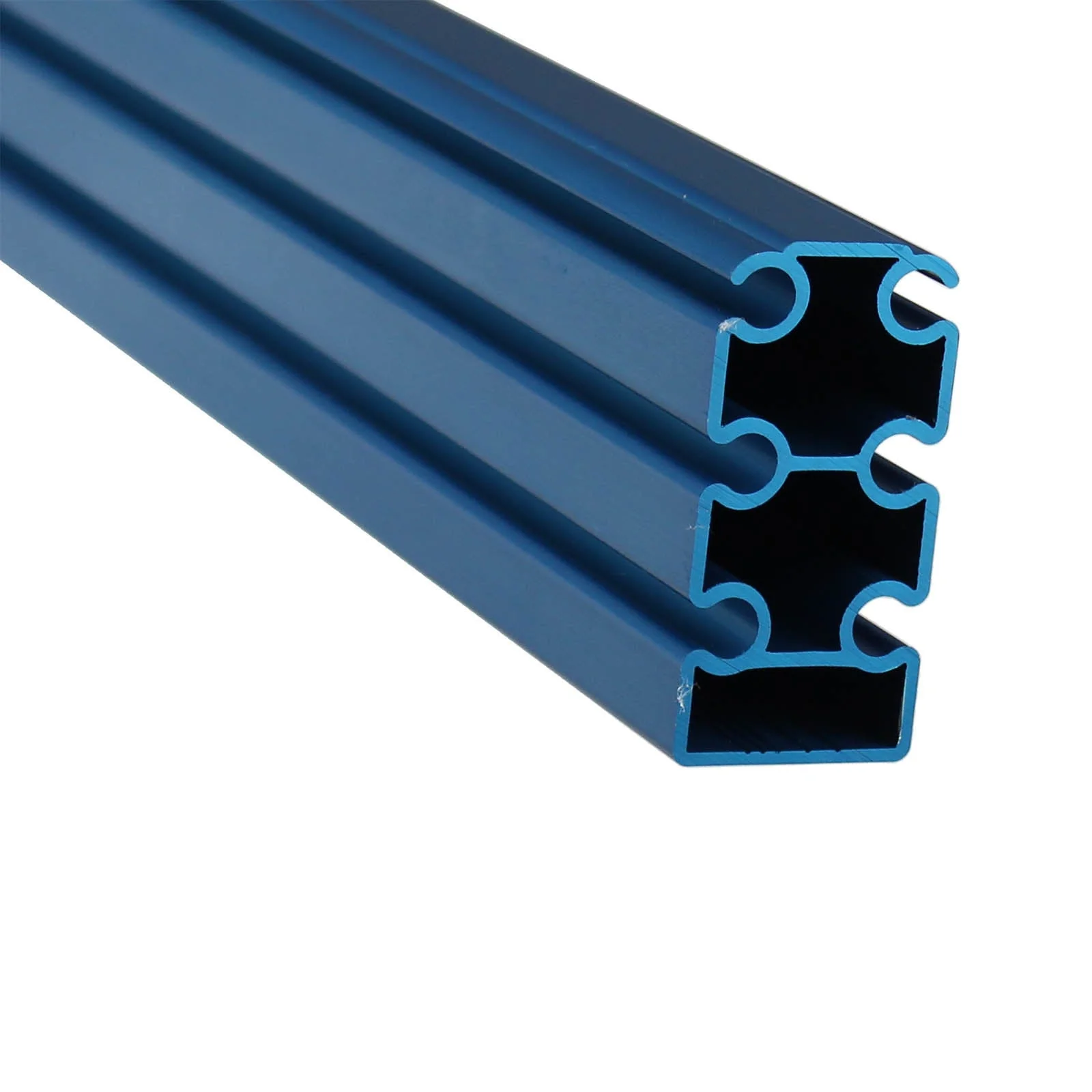

    Blue: 35183-35180

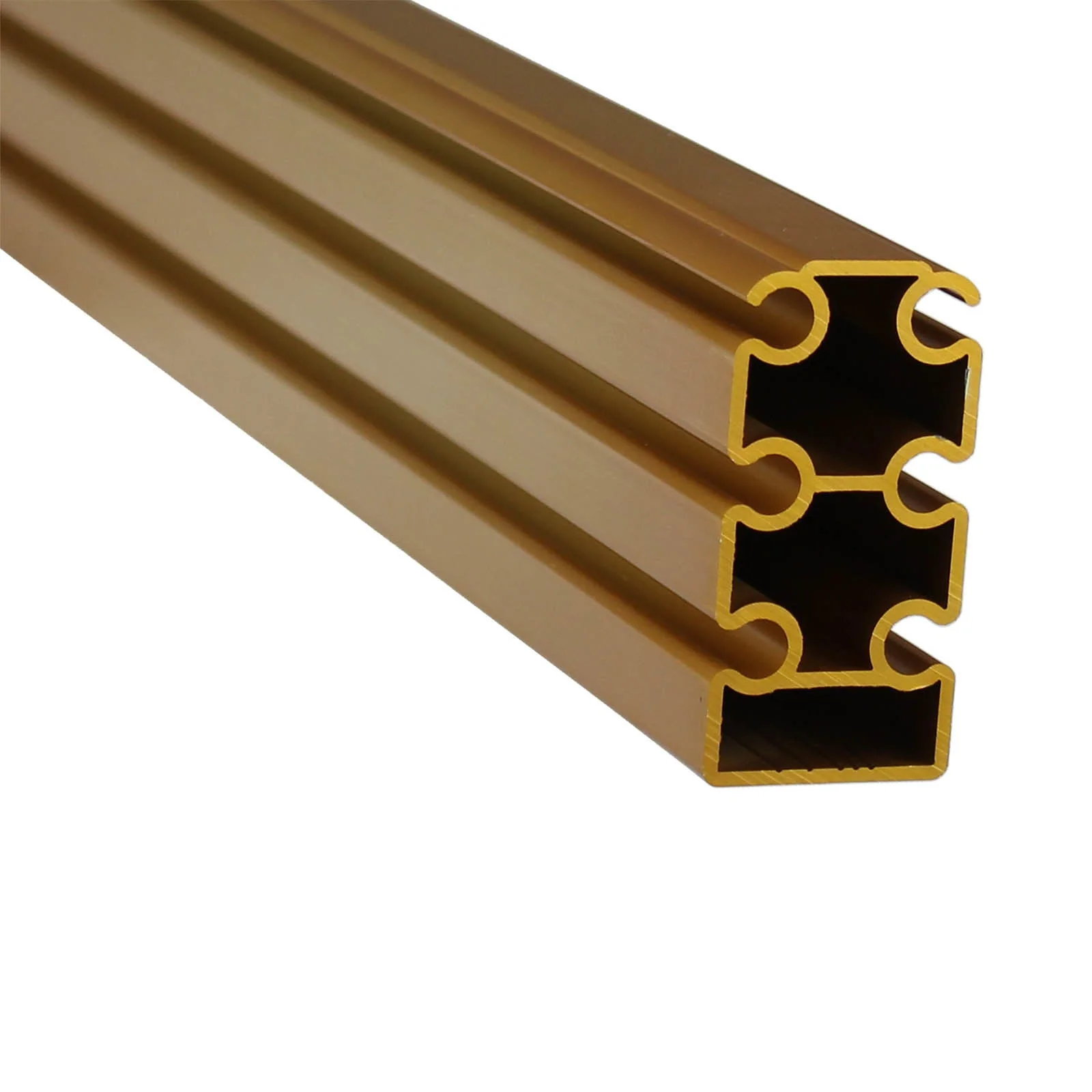

    Gold: 10260-10371
    • Height: 2 in.
    • Hole Size: Sized for 1/4-20 Thread-Forming Screw
    • Hole Spacing: 5/8 in. Equally spaced in an X-Y grid
    • Length: Selectable Above (+/- 1 in.)
    • Material: Aluminium 6005A-T61
    • Weight per foot: 0.63 lbs.
    • Width: 1 in.
