The hex short output shaft is but one of many options for output when it comes to Toughbox series gearboxes. This shaft includes a magnet pressed into the small end of the output shaft making it compatible with magnetic encoders.

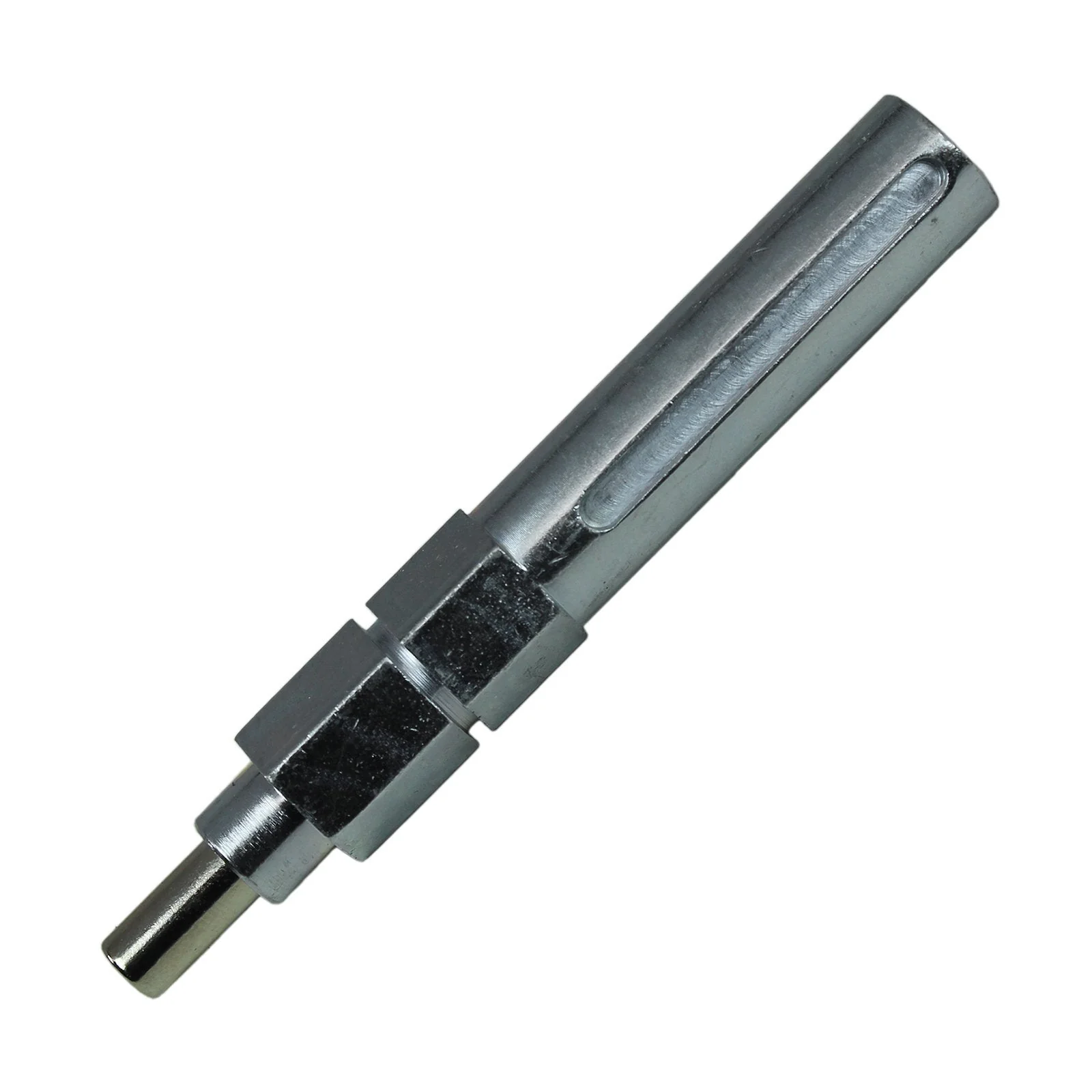

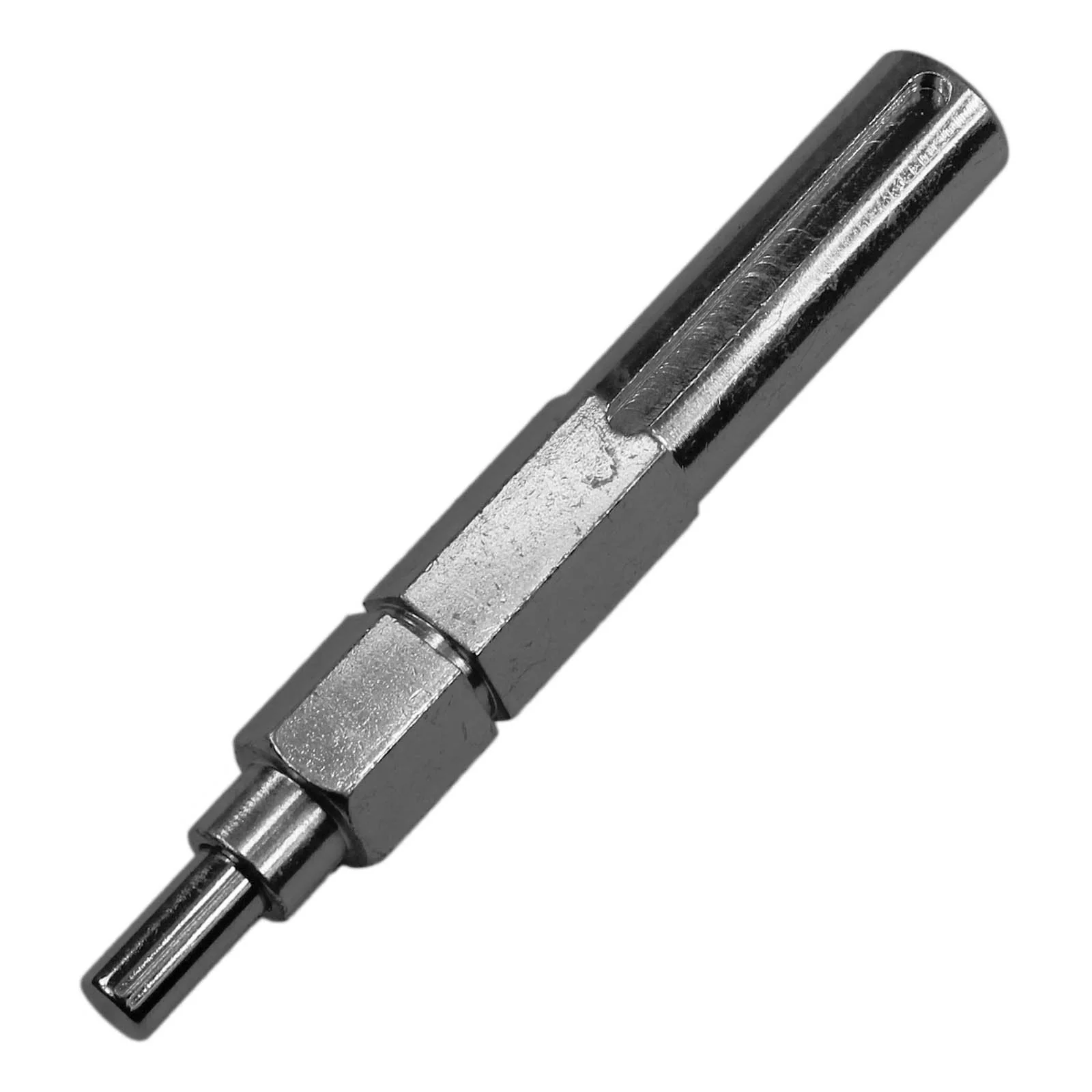

The keyed steel output shaft can be used in any Toughbox® series gearbox. This shaft includes a pre-installed magnet designed specifically with the E4T OEM Miniature Optical Encoder (am-3132) and SRX Magnetic Encoder (am-3445) encoder in mind. This shaft has replaced am-0506. When used in a Toughbox® series gearbox this shaft needs to be supported with a 1/2 in. hex bearing such as am-0279.

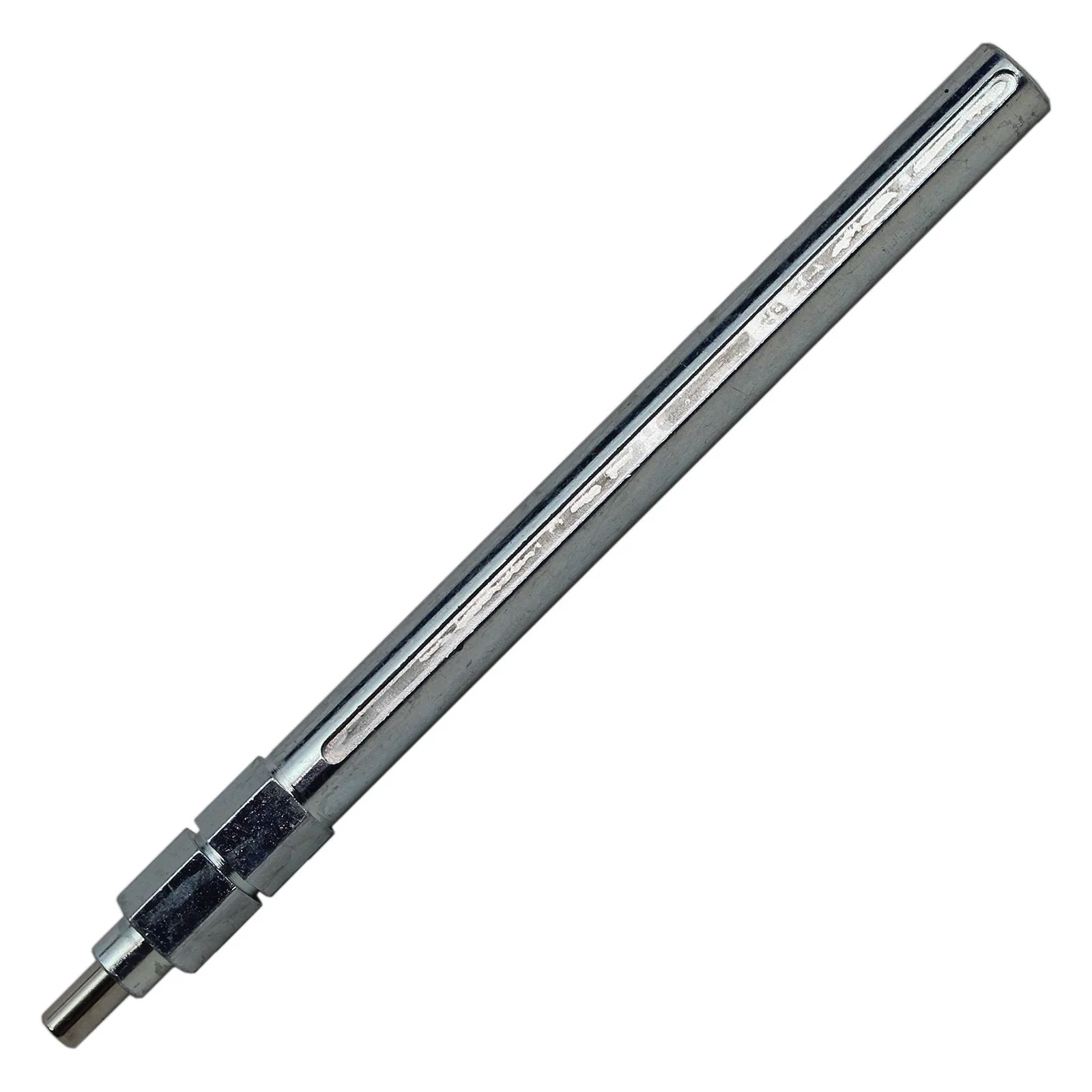

The long steel output shaft is optional for the Toughbox>® series gearboxes. This shaft includes a pre-installed magnet designed specifically with the E4T OEM Miniature Optical Encoder (am-3132) and SRX Magnetic Encoder (am-3445) encoder in mind. This shaft has replaced am-0211.

Usage:
If using this shaft with the SRX Magnetic Encoder (am-3445), the SRX Magnetic Encoder Mounting Hardware Kit (am-3565) will be needed. The hardware allows for proper spacing of the encoder from the shaft magnet on Toughbox® Series Gearboxes and the EVO Shifter.

• Diameter of Large End: 0.49 in.
• Diameter of Small End: 0.37 in.
• Keyway Length: 1.43 in.
• Keyway Width: 0.13 in.
• Overall Length: 3.62 in.
• Thread: 1/4-20 tapped hole
• Weight: 0.177 Ibs

• Diameter of Small End: 0.375 in.
• Hex Width: 0.5 in.
• Large End Includes: 1/4-20 tapped hole
• Weight: 0.2 Ibs

Specifications for am-0506a:

• Depth of Round Portion: 1.52 in.
• Diameter of Large End: 0.49 in.
• Diameter of Magnet End: 0.25 in.
• Keyway Depth: 0.063 in.
• Keyway Length: 1.395 in.
• Keyway Width: 0.128 - 0.131 in.
• Overall Length: 3.755 in.
• Weight: 0.217 Ibs

• Diameter of Large End: 0.49 in.
• Diameter of Magnet End: 0.24 in.
• Diameter of Small End: 0.37 in.
• Hex Width: 0.5 in.
• Overall Length: 7.14 in.
• Thread: 1/4-20 tapped 0.5 in. deep
• Weight: 0.39 Ibs
