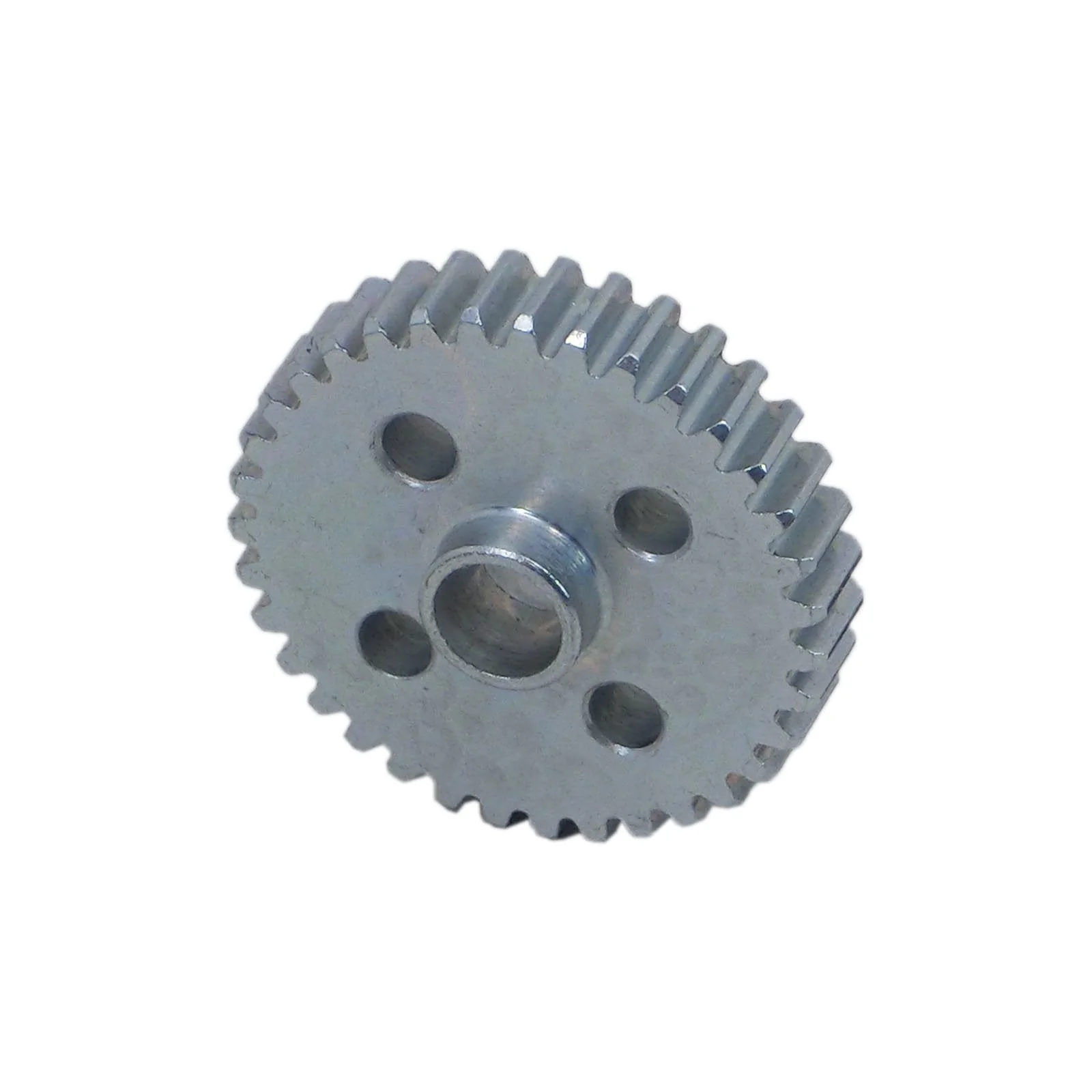

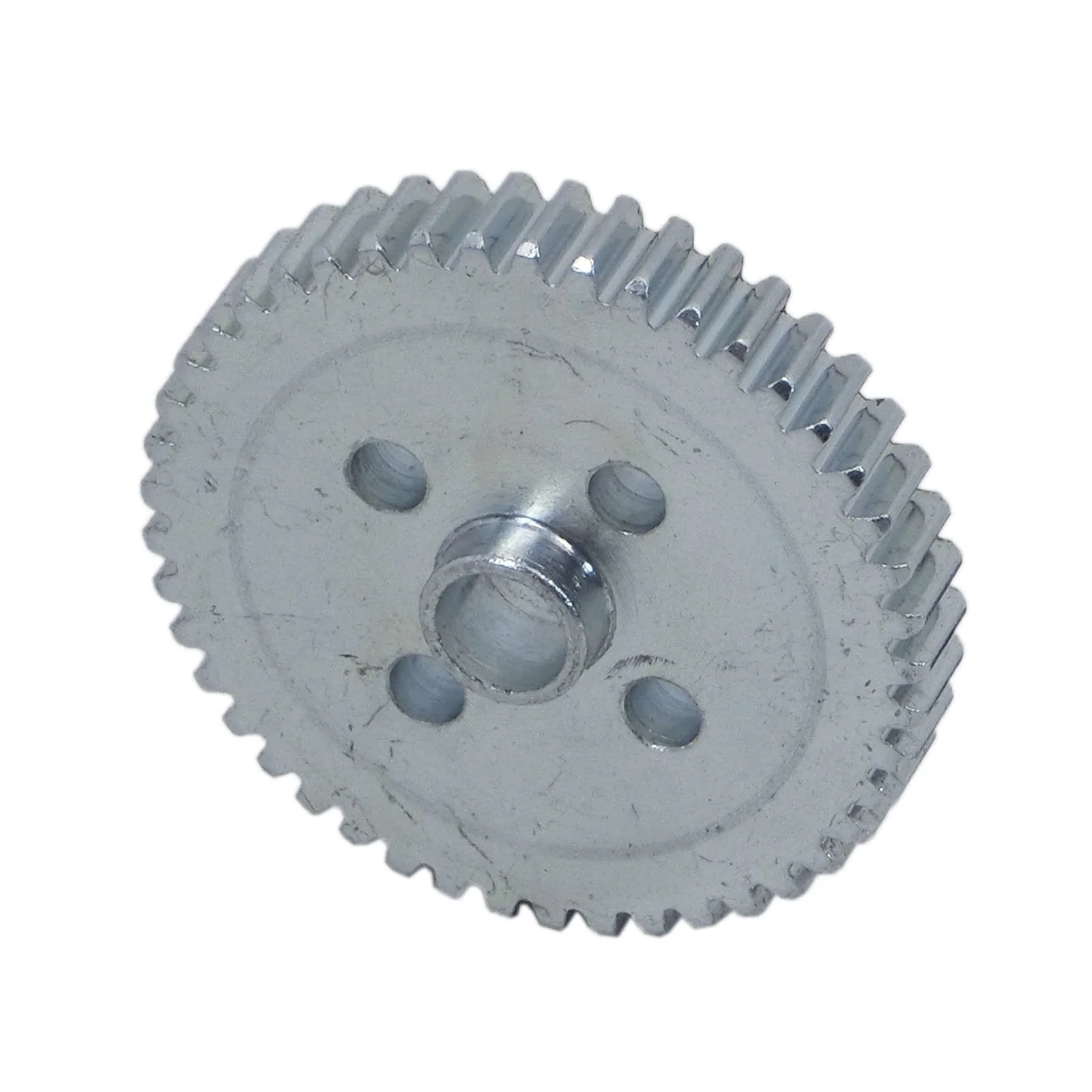

32 DP Nub Bore Steel Gears for PicoBox
- Description
-
PicoBox Gearboxes is an entire family of gearboxes we've developed with FIRST Tech Challenge in mind, but can be used in many applications.
These Gears are specifically designed for use in a PicoBox Gearboxes.
Specifications for am-3407:
- Pitch Diameter: 1.25 in.
- Teeth: 40
- Weight: 0.1 Ibs
Specifications for am-3408:
- Pitch Diameter: 1.093 in.
- Teeth: 35
- Weight: 0.08 Ibs
Specifications for am-3409:
- Pitch Diameter: 1.406 in.
- Teeth: 45
- Weight: 0.12 Ibs
Other Specifications:
- Bolt Pattern: 4 0.14 in. Holes on a 16 mm diameter bolt circle
- Bore: Nub Bore
- Diametral Pitch: 32
- Face Width: 6 mm
- Finish: Zinc Plated
- Material: 4140 Steel
Select Tooth Count
From $6.90
32 DP Nub Bore Steel Gears for PicoBox—
$6.90
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Description
-
PicoBox Gearboxes is an entire family of gearboxes we've developed with FIRST Tech Challenge in mind, but can be used in many applications.
These Gears are specifically designed for use in a PicoBox Gearboxes.
Specifications for am-3407:
- Pitch Diameter: 1.25 in.
- Teeth: 40
- Weight: 0.1 Ibs
Specifications for am-3408:
- Pitch Diameter: 1.093 in.
- Teeth: 35
- Weight: 0.08 Ibs
Specifications for am-3409:
- Pitch Diameter: 1.406 in.
- Teeth: 45
- Weight: 0.12 Ibs
Other Specifications:
- Bolt Pattern: 4 0.14 in. Holes on a 16 mm diameter bolt circle
- Bore: Nub Bore
- Diametral Pitch: 32
- Face Width: 6 mm
- Finish: Zinc Plated
- Material: 4140 Steel
